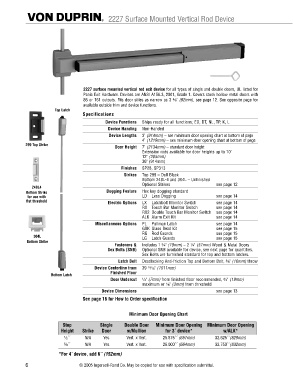

2227 Surface Mounted Vertical Rod Device

2227 surface mounted vertical rod exit device for all types of single and double doors, UL listed for
Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with
86 or 161 cutouts. Fits door stiles as narrow as 3 ⁵|₈" (92mm), see page 12. See opposite page for
available outside trim and device functions.
Top Latch
Specifications
Device Functions Ships ready for all functions; EO, DT, NL, TP, K, L
Device Handing Non-Handed
Device Lengths 3’ (914mm) – see minimum door opening chart at bottom of page
4’ (1219mm) – see minimum door opening chart at bottom of page
299 Top Strike
Door Height 7’ (2134mm) – standard door height
Extension rods available for door heights up to 10’
12" (205mm)
36" (914mm)
Finishes SP28, SP313
Strikes Top 299 – Dull Black
Bottom 248L-4 and 304L – Unfinished
Optional Strikes see page 12
248L4
Bottom Strike Dogging Feature Hex key dogging standard
for use with LD Less Dogging see page 14
flat threshold
Electric Options LX Latchbolt Monitor Switch see page 14
RX Touch Bar Monitor Switch see page 14
RX2 Double Touch Bar Monitor Switch see page 14
ALK Alarm Exit Kit see page 14
Miscellaneous Options PL Pullman Latch see page 14
GBK Glass Bead Kit see page 15
RG Rod Guards see page 15
304L
LG Latch Guards see page 15
Bottom Strike
Fasteners & Includes 1 ³|₄" (19mm) – 2 ¹|₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities.
Sex Bolts are furnished standard for top and bottom latches.
Latch Bolt Deadlocking Anti-friction Top and Bottom Bolt, ⁵|₈" (16mm) throw
Device Centerline from 39 ¹³|₁₆" (1011mm)
Finished Floor
Bottom Latch
Door Undercut ¹|₄" (7mm) from finished floor recommended, ³|₄" (19mm)
maximum or ¹|₈" (3mm) from threshold
Device Dimensions see page 13
See page 16 for How to Order specification

Minimum Door Opening Chart

Stop Single Double Door Minimum Door Opening Minimum Door Opening
Height Strike Door w/Mullion for 3´ device* w/ALK*
¹|₂´´ N/A Yes Vert. x Vert. 25.875´´ (657mm) 32.625´´(829mm)
⁵|₈´´ N/A Yes Vert. x Vert. 26.000´´ (664mm) 32.750´´(832mm)

*For 4´ device, add 6´´ (152mm)
6 © 2005 Ingersoll-Rand Co. May be copied for use with specification submittal.
