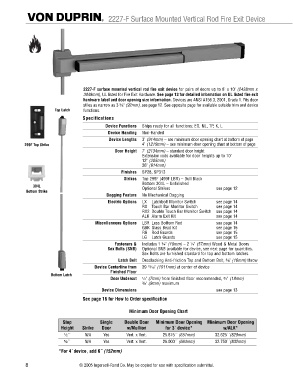

Page 54 - Antipanico Von Duprin

2227-F Surface Mounted Vertical Rod Fire Exit Device

2227-F surface mounted vertical rod fire exit device for pairs of doors up to 8’ x 10’ (2438mm x
3048mm), UL listed for Fire Exit Hardware. See page 13 for detailed information on UL listed fire exit
hardware label and door opening size information. Devices are ANSI A156.3, 2001, Grade 1. Fits door
stiles as narrow as 3 ⁵|₈" (92mm), see page 12. See opposite page for available outside trim and device
Top Latch functions.
Specifications
Device Functions Ships ready for all functions; EO, NL, TP, K, L
Device Handing Non-Handed
Device Lengths 3’ (914mm) – see minimum door opening chart at bottom of page
299F Top Strike 4’ (1219mm) – see minimum door opening chart at bottom of page
Door Height 7’ (2134mm) – standard door height
Extension rods available for door heights up to 10’
12" (205mm)
36" (914mm)
Finishes SP28, SP313
Strikes Top 299F (499F LBR) – Dull Black
Bottom 304L – Unfinished
304L
Optional Strikes see page 12
Bottom Strike
Dogging Feature No Mechanical Dogging
Electric Options LX Latchbolt Monitor Switch see page 14
RX Touch Bar Monitor Switch see page 14
RX2 Double Touch Bar Monitor Switch see page 14
ALK Alarm Exit Kit see page 14
Miscellaneous Options LBR Less Bottom Rod see page 14
GBK Glass Bead Kit see page 15
RG Rod Guards see page 15
LG Latch Guards see page 15
Fasteners & Includes 1 ³|₄" (19mm) – 2 ¹|₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities.
Sex Bolts are furnished standard for top and bottom latches.
Latch Bolt Deadlocking Anti-friction Top and Bottom Bolt, ⁵|₈" (16mm) throw
Device Centerline from 39 ¹³|₁₆" (1011mm) at center of device
Finished Floor
Bottom Latch
Door Undercut ¹|₄" (7mm) from finished floor recommended, ³|₄" (19mm)
³|₈" (9mm) maximum
Device Dimensions see page 13
See page 16 for How to Order specification

Minimum Door Opening Chart
Stop Single Double Door Minimum Door Opening Minimum Door Opening
Height Strike Door w/Mullion for 3´ device* w/ALK*
¹|₂´´ N/A Yes Vert. x Vert. 25.875´´ (657mm) 32.625´´(829mm)
⁵|₈´´ N/A Yes Vert. x Vert. 26.000´´ (664mm) 32.750´´(832mm)

*For 4´ device, add 6´´ (152mm)
