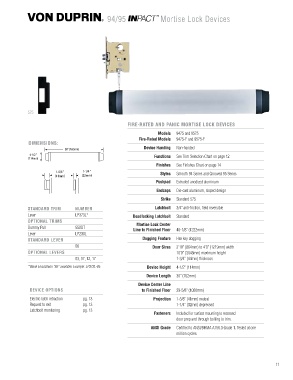

94/95 Mortise Lock Devices

575

FIRE-RATED AND PANIC MORTISE LOCK DEVICES
Models 9475 and 9575
Fire-Rated Models 9475-F and 9575-F
DIMENSIONS:
Device Handing Non-handed
Functions See Trim Selection Chart on page 12
Finishes See Finishes Chart on page 14

Styles Smooth 94 Series and Grooved 95 Series
Pushpad Extruded anodized aluminum
Endcaps Die-cast aluminum, sloped design
Strike Standard 575

STANDARD TRIM NUMBER Latchbolt 3/4" anti-friction, field reversible
Lever LP373L* Deadlocking Latchbolt Standard
OPTIONAL TRIMS
Mortise Lock Center
Dummy Pull 550DT
Line to Finished Floor 48-1/8" (1222mm)
Lever LP230L
STANDARD LEVER Dogging Feature Hex key dogging
06 Door Sizes 2'10" (864mm) to 4'0" (1219mm) width
OPTIONAL LEVERS 10'0" (3048mm) maximum height
03, 07, 12, 17 1-3/4" (44mm) thickness
*Blank Escutcheon “BE” available. Example: LP373L-BE Device Height 4-1/2" (114mm)
Device Length 30" (762mm)

Device Center Line
DEVICE OPTIONS to Finished Floor 39-5/8" (1006mm)
Electric latch retraction pg. 13 Projection 1-5/8" (41mm) neutral
Request to exit pg. 13 1-1/4" (32mm) depressed
Latchbolt monitoring pg. 13
Fasteners Included for surface mounting to recessed
door prep and through bolting to trim.
ANSI Grade Certified to ANSI/BHMA A156.3 Grade 1. Tested at one
million cycles.

11
