P. 52

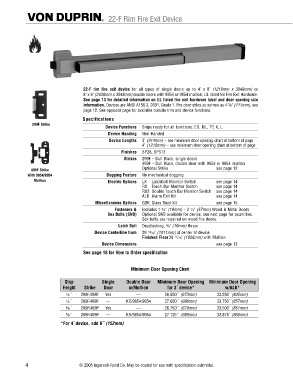

22-F Rim Fire Exit Device
22-F rim fire exit device for all types of single doors up to 4’ x 8’ (1219mm x 3048mm) or
8’ x 8’ (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware.
See page 13 for detailed information on UL listed fire exit hardware label and door opening size
information. Devices are ANSI A156.3, 2001, Grade 1. Fits door stiles as narrow as 4 ³|₈" (111mm), see
page 12. See opposite page for available outside trim and device functions.
Specifications
299F Strike
Device Functions Ships ready for all functions; EO, NL, TP, K, L
Device Handing Non-Handed
Device Lengths 3’ (914mm) – see minimum door opening chart at bottom of page
4’ (1219mm) – see minimum door opening chart at bottom of page
Finishes SP28, SP313
Strikes 299F – Dull Black, single doors
499F – Dull Black, double door with 9954 or 9854 mullion
Optional Strike see page 12
499F Strike
With 9854/9954 Dogging Feature No mechanical dogging
Mullion Electric Options LX Latchbolt Monitor Switch see page 14
RX Touch Bar Monitor Switch see page 14
RX2 Double Touch Bar Monitor Switch see page 14
ALK Alarm Exit Kit see page 14
Miscellaneous Options GBK Glass Bead Kit see page 15
Fasteners & Includes 1 ³|₄" (19mm) – 2 ¹|₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities.
Sex bolts are required on wood fire doors.
Latch Bolt Deadlocking, ³|₄" (19mm) throw
Device Centerline from 39 ¹³|₁₆" (1011mm) at center of device
Finished Floor39 ¹¹|₁₆" (1008mm) with Mullion
Device Dimensions see page 13
See page 16 for How to Order specification
Minimum Door Opening Chart
Stop Single Double Door Minimum Door Opening Minimum Door Opening
Height Strike Door w/Mullion for 3´ device* w/ALK*
¹|₂´´ 299F/499F Yes –– 26.500´´ (673mm) 33.250´´(845mm)
¹|₂´´ 299F/499F –– KR/9854/9954 27.000´´ (686mm) 33.750´´(857mm)
⁵|₈´´ 299F/499F Yes –– 26.750´´ (679mm) 33.500´´(851mm)
⁵|₈´´ 299F/499F –– KR/9854/9954 27.125´´ (689mm) 33.875´´(860mm)
*For 4´ device, add 6´´ (152mm)
