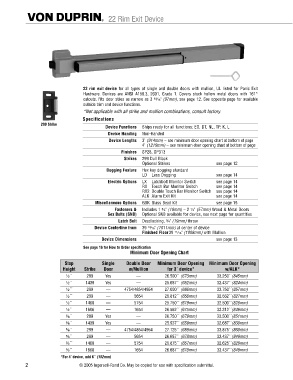

22 Rim Exit Device

22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit
Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161*
cutouts. Fits door stiles as narrow as 3 ¹³|₁₆" (97mm), see page 12. See opposite page for available
outside trim and device functions.
*Not applicable with all strike and mullion combinations, consult factory.
Specifications
299 Strike
Device Functions Ships ready for all functions; EO, DT, NL, TP, K, L
Device Handing Non-Handed
Device Lengths 3’ (914mm) – see minimum door opening chart at bottom of page
4’ (1219mm) – see minimum door opening chart at bottom of page
Finishes SP28, SP313
Strikes 299 Dull Black
Optional Strikes see page 12
Dogging Feature Hex key dogging standard
LD Less Dogging see page 14
Electric Options LX Latchbolt Monitor Switch see page 14
RX Touch Bar Monitor Switch see page 14
RX2 Double Touch Bar Monitor Switch see page 14
ALK Alarm Exit Kit see page 14
Miscellaneous Options GBK Glass Bead Kit see page 15
Fasteners & Includes 1 ³|₄" (19mm) – 2 ¹|₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities
Latch Bolt Deadlocking, ³|₄" (19mm) throw
Device Centerline from 39 ¹³|₁₆" (1011mm) at center of device
Finished Floor39 ¹¹|₁₆" (1008mm) with Mullion
Device Dimensions see page 13
See page 16 for How to Order specification
Minimum Door Opening Chart

Stop Single Double Door Minimum Door Opening Minimum Door Opening
Height Strike Door w/Mullion for 3´ device* w/ALK*
¹|₂´´ 299 Yes –– 26.500´´ (673mm) 33.250´´(845mm)
¹|₂´´ 1439 Yes –– 25.687´´ (652mm) 32.437´´(824mm)
¹|₂´´ 299 –– 4754/4854/4954 27.000´´ (686mm) 33.750´´(857mm)
¹|₂´´ 299 –– 5654 25.812´´ (656mm) 32.562´´(827mm)
¹|₂´´ 1408 –– 5754 25.750´´ (679mm) 32.500´´(826mm)
¹|₂´´ 1606 –– 1654 26.562´´ (675mm) 33.312´´(846mm)
⁵|₈´´ 299 Yes –– 26.750´´ (679mm) 33.500´´(851mm)
⁵|₈´´ 1439 Yes –– 25.937´´ (659mm) 32.687´´(830mm)
⁵|₈´´ 299 –– 4754/4854/4954 27.125´´ (689mm) 33.875´´(860mm)
⁵|₈´´ 299 –– 5654 26.687´´ (678mm) 33.437´´(849mm)
⁵|₈´´ 1408 –– 5754 25.875´´ (657mm) 32.625´´(829mm)
⁵|₈´´ 1606 –– 1654 26.687´´ (678mm) 33.437´´(849mm)
*For 4´ device, add 6´´ (152mm)
2 © 2005 Ingersoll-Rand Co. May be copied for use with specification submittal.
