P. 48

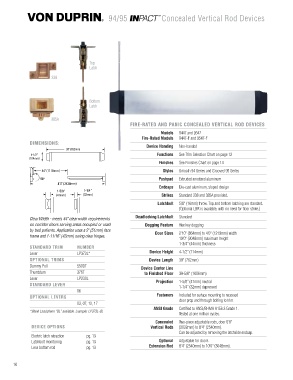

94/95               Concealed Vertical Rod Devices










                                      Top
                                      Latch

                       338




                                      Bottom
                                      Latch


                      385A
                                                       FIRE-RATED AND PANIC CONCEALED VERTICAL ROD DEVICES
                                                                    Models  9447 and 9547
                                                            Fire-Rated Models  9447-F and 9547-F
             DIMENSIONS:
                                                              Device Handing  Non-handed
                                                                   Functions  See Trim Selection Chart on page 12
                                                                   Finishes  See Finishes Chart on page 14
                                                                     Styles  Smooth 94 Series and Grooved 95 Series
                                                                   Pushpad  Extruded anodized aluminum
                                                                    Endcaps  Die-cast aluminum, sloped design
                                                                     Strikes  Standard 338 and 385A provided.
                                                                   Latchbolt  5/8" (16mm) throw. Top and bottom latching are standard.
                                                                            (Optional LBR is available, with no need for floor strike.)
                                                          Deadlocking Latchbolt   Standard
             Clear Width - meets 44" clear width requirements
             on corridor doors serving areas occupied or used  Dogging Feature   Hex key dogging
             by bed patients. Application uses a 2" (51mm) face
                                                                  Door Sizes  2'10" (864mm) to 4'0" (1219mm) width
             frame and 1-11/16" (43mm) swing clear hinges.
                                                                            10'0" (3048mm) maximum height
                                                                            1-3/4" (44mm) thickness
             STANDARD TRIM       NUMBER
                                                               Device Height  4-1/2" (114mm)
             Lever               LP373L*
             OPTIONAL TRIMS                                    Device Length  30" (762mm)
             Dummy Pull          550DT
                                                            Device Center Line
             Thumbturn           376T                        to Finished Floor  39-5/8" (1006mm)
             Lever               LP230L
                                                                  Projection  1-5/8" (41mm) neutral
             STANDARD LEVER
                                                                            1-1/4" (32mm) depressed
                                 06
                                                                  Fasteners  Included for surface mounting to recessed
             OPTIONAL LEVERS
                                                                            door prep and through bolting to trim.
                                 03, 07, 12, 17
                                                                 ANSI Grade   Certified to ANSI/BHMA A156.3 Grade 1.
             *Blank Escutcheon “BE” available. Example: LP373L-BE
                                                                            Tested at one million cycles.
                                                                  Concealed   Two-piece adjustable rods, door 6'8"
              DEVICE OPTIONS                                    Vertical Rods  (2032mm) to 8'4" (2540mm).
                                                                            Can be adjusted by removing the latchside endcap.
              Electric latch retraction  pg. 13
              Latchbolt monitoring   pg. 13                        Optional   Adjustable for doors
                                                               Extension Rod  8'4" (2540mm) to 10'0" (3048mm).
              Less bottom rod        pg. 13

       10
