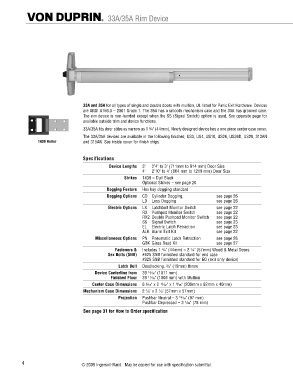

33A/35A Rim Device

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices
are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case.
The rim device is non-handed except when the SS (Signal Switch) option is used. See opposite page for
available outside trim and device functions.
33A/35A fits door stiles as narrow as 1 ³|₄" (44mm). Newly designed device has a one piece center case cover.
The 33A/35A devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313AN
1439 Roller and 315AN. See inside cover for finish chips.

Specifications
Device Lengths 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes 1439 – Dull Black
Optional Strikes – see page 20
Dogging Feature Hex key dogging standard
Dogging Options CD Cylinder Dogging, see page 26
LD Less Dogging see page 26
Electric Options LX Latchbolt Monitor Switch see page 22
RX Pushpad Monitor Switch see page 22
RX2 Double Pushpad Monitor Switch see page 22
SS Signal Switch see page 23
EL Electric Latch Retraction see page 23
ALK Alarm Exit Kit see page 22
Miscellaneous Options PN Pneumatic Latch Retraction see page 26
GBK Glass Bead Kit see page 27
Fasteners & Includes 1 ³|₄" (44mm) – 2 ¹|₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) #425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)
Latch Bolt Deadlocking, ³|₄" (19mm) throw
Device Centerline from 39 ¹³|₁₆" (1011 mm)
Finished Floor 39 ¹¹|₁₆" (1008 mm) with Mullion
Center Case Dimensions 8 ³|₁₆" x 2 ¹³|₃₂" x 1 ⁹|₁₆" (208mm x 62mm x 40mm)
Mechanism Case Dimensions 2 ¹|₄" x 2 ¹|₄" (57mm x 57mm)
Projection Pushbar Neutral – 3 ¹³|₁₆" (97 mm)
Pushbar Depressed – 3 ¹|₁₆" (78 mm)
See page 31 for How to Order specification
