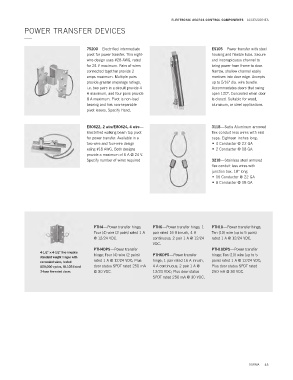

Page 45 - Herrajes Patricios - Dorma

ELECTRONIC ACCESS CONTROL COMPONENTS ACCESSORIES
POWER TRANSFER DEVICES
—

75200—Electrified intermediate ES105—Power transfer with steel
pivot for power transfer. This eight- housing and flexible tube. Secure
wire design uses #28 AWG, rated and inconspicuous channel to
for 24 V maximum. Pairs of wires bring power from frame to door.
connected together provide 2 Narrow, shallow channel easily
amps maximum. Multiple pairs mortises into door edge. Accepts
provide greater amperage ratings, up to 5/16" dia. wire bundle.
i.e. two pairs in a circuit provide 4 Accommodates doors that swing
A maximum, and four pairs provide open 120º. Concealed when door
8 A maximum. Pivot is non-load is closed. Suitable for wood,
bearing and has non-separable aluminum, or steel applications.
pivot leaves. Specify Hand.

E80622, 2 wire/E80624, 4 wire— 3118—Satin Aluminum armored
Electrified walking beam top pivot flex conduit less wires with end
for power transfer. Available in a caps. Eighteen inches long.
two-wire and four-wire design . 4 Conductor @ 22 GA
using #18 AWG. Both designs . 2 Conductor @ 18 GA
provide a maximum of 6 A @ 24 V.
Specify number of wires required 3218—Stainless steel armored
flex conduit less wires with
junction box. 18" long.
. 16 Conductor @ 22 GA
. 8 Conductor @ 18 GA

PTH4—Power transfer hinge; PTH6—Power transfer hinge; 1 PTH10—Power transfer hinge;
Four (4) wire (2 pairs) rated 1 A pair rated 16 A inrush, 4 A Ten (10) wire (up to 5 pairs)
@ 12/24 VDC. continuous; 2 pair 1 A @ 12/24 rated 1 A @ 12/24 VDC.
VDC.
PTH4DPS—Power transfer PTH10DPS—Power transfer
4-1/2" × 4-1/2" five-knuckle hinge; Four (4) wire (2 pairs) PTH6DPS—Power transfer hinge; Ten (10) wire (up to 5
standard weight hinges with
concealed wires, tested rated 1 A @ 12/24 VDC; Plus hinge; 1 pair rated 16 A inrush, pairs) rated 1 A @ 12/24 VDC;
800,000 cycles, UL10B listed door status SPDT rated 250 mA 4 A continuous; 2 pair 1 A @ Plus door status SPDT rated
3-hour fire-rated doors. @ 30 VDC. 12/24 VDC; Plus door status 250 mA @ 30 VDC.
SPDT rated 250 mA @ 30 VDC.

DORMA 45
