ELECTRONIC ACCESS CONTROL COMPONENTS ACCESSORIES

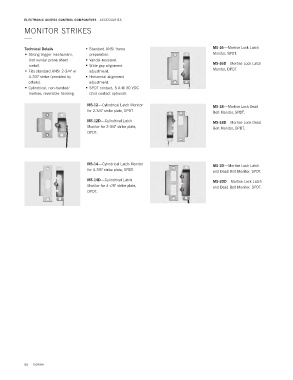

MONITOR STRIKES
—

Technical Details . Standard ANSI frame MS-16—Mortise Lock Latch
. Strong trigger mechanism, preparation. Monitor, SPDT.
(not vandal prone sheet . Vandal-resistant.
metal). . Wide gap alignment MS-16D—Mortise Lock Latch
. Fits standard ANSI 2-3/4" or adjustment. Monitor, DPDT.
4-7/8" strike (provided by . Horizontal alignment
others). adjustment.
. Cylindrical, non-handed/ . SPDT contact, 5 A @ 30 VDC

mortise, reversible handing. (2nd contact optional).

MS-12—Cylindrical Latch Monitor MS-18—Mortise Lock Dead
for 2-3/4" strike plate, SPDT. Bolt Monitor, SPDT.

MS-12D—Cylindrical Latch MS-18D—Mortise Lock Dead
Monitor for 2-3/4" strike plate, Bolt Monitor, DPDT.
DPDT.

MS-14—Cylindrical Latch Monitor MS-20—Mortise Lock Latch
for 4-7/8" strike plate, SPDT. and Dead Bolt Monitor, SPDT.
MS-14D—Cylindrical Latch MS-20D—Mortise Lock Latch
Monitor for 4-7/8" strike plate, and Dead Bolt Monitor, DPDT.
DPDT.

50 DORMA
