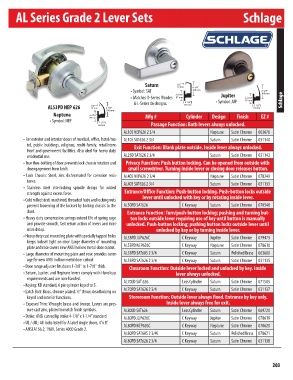

Page 30 - Cerraduras Schlage

AL Series Grade 2 Lever Sets Schlage

Saturn 1/2" 4-1/4"
13 mm
• Symbol: SAT 108 mm 4-1/4"
3-7/16" Jupiter 108 mm
• Matches D-Series Rhodes 87 mm 3-7/16"
87 mm
& L-Series 06 designs. 64 mm • Symbol: JUP Schlage
2-1/2"
AL53PD NEP 626 1/2" 4-1/4" 64 mm
2-1/2"
13 mm
108 mm
Neptune 3-7/16" Mfg # Cylinder Design Finish EZ #
• Symbol: NEP 87 mm 2-1/2"
64 mm Passage Function: Both levers always unlocked.
AL10S NEP626 2 3/4 Neptune Satin Chrome 063676
• For exterior and interior doors of medical, office, hotel/mo- AL10S SAT626 2 3/4 Saturn Satin Chrome 031140
tel, public buildings, religious, multi-family, retail/store- Exit Function: Blank plate outside. Inside lever always unlocked.
front and government facilities. Also ideal for heavy duty
residential use. AL25D SAT626 2 3/4 Saturn Satin Chrome 031142
• True thru-bolting of door prevents lock chassis rotation and Privacy Function: Push button locking. Can be opened from outside with
disengagement from latch. small screwdriver. Turning inside lever or closing door releases button.
• Lock Chassis: Steel, zinc dichromated for corrosion resis- AL40S NEP626 2 3/4 Neptune Satin Chrome 078249
tance. AL40S SAT626 2 3/4 Saturn Satin Chrome 031133
• Stainless steel interlocking spindle design for added
strength against excess force. Entrance/Office Function: Push-button locking. Push-button locks outside
• Cold rolled steel, machined, threaded hubs and locking nuts lever until unlocked with key or by rotating inside lever.
prevent loosening of the lockset by bolting chassis to the AL50PD SAT626 C Keyway Saturn Satin Chrome 070548
door. Entrance Function: Turn/push-button locking; pushing and turning but-
• Heavy duty compression springs extend life of spring cage ton locks outside lever requiring use of key until button is manually
and provide smooth, fast return action of levers and mini- unlocked. Push-button locking; pushing button locks outside lever until
mize droop. unlocked by key or by turning inside lever.
• Heavy duty cast mounting plate with specially tapped holes AL53PD JUP626C C Keyway Jupiter Satin Chrome 079473
keeps lockset tight on door. Large diameter of mounting
plate and rose covers new ANSI hollow metal door cutout. AL53PD NEP626C C Keyway Neptune Satin Chrome 078610
• Large diameter of mounting plate and rose provides cover- AL53PD SAT605 2 3/4 C Keyway Saturn Polished Brass 063600
age for new ANSI hollow metal door cutout. AL53PD SAT626 2 3/4 C Keyway Saturn Satin Chrome 031135
• Door range adjuster fits doors 1-3/8" to 1-7/8" thick. Classroom Function: Outside lever locked and unlocked by key. Inside
• Saturn, Jupiter, and Neptune levers comply with Handicap lever always unlocked.
requirements and are non-handed. AL70LD SAT 626 Less Cylinder Saturn Satin Chrome 071505
• Keying: KD standard, 6 pin cylinder keyed to 5.
• Latch Bolt: Brass, chrome plated, ½” throw, deadlocking on AL70PD SAT626 2 3/4 C Keyway Saturn Satin Chrome 031137
keyed and exterior functions. Storeroom Function: Outside lever always fixed. Entrance by key only.
• Exposed Trim: Wrought brass and bronze. Levers are pres- Inside lever always free for exit.
sure cast zinc, plated to match finish symbols. AL80LD SAT626 Less Cylinder Saturn Satin Chrome 069720
• Strike: ANSI curved lip strike 4-7/8” x 1-1/4” standard AL80PD JUP626C C Keyway Jupiter Satin Chrome 078619
• UL / cUL: All locks listed for A label single doors, 4’ x 8’. AL80PD NEP626C C Keyway Neptune Satin Chrome 078620
• ANSI A156.2, 1989, Series 4000 Grade 2.
AL80PD SAT605 2 3/4C C Keyway Saturn Polished Brass 078621
AL80PD SAT626 2 3/4 C Keyway Saturn Satin Chrome 031138

203
