Page 25 - Cerraduras Schlage

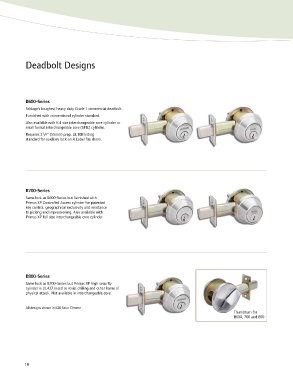

Deadbolt Designs

B600-Series
Schlage’s toughest heavy duty Grade 1 commercial deadbolt.
Furnished with conventional cylinder standard.
Also available with full size interchangeable core cylinder or
small format interchangeable core (SFIC) cylinder.
Requires 2 1 /4” (55mm) prep. UL10B listing
standard for auxiliary lock on A Label fire doors.

B700-Series
Same lock as B600-Series but furnished with
Primus XP Controlled Access cylinder for patented
key control, geographical exclusivity and resistance
to picking and impressioning. Also available with
Primus XP full size interchangeable core cylinder.

B800-Series
Same lock as B700-Series but Primus XP high security
cylinder is UL437 listed to resist drilling and other forms of
physical attack. Not available in interchangeable core.

All designs shown in 626 Satin Chrome
Thumbturn for
B600, 700 and 800

10 11
