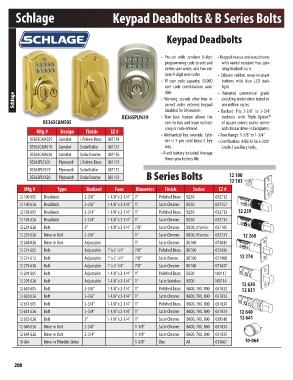

Schlage Keypad Deadbolts & B Series Bolts

Keypad Deadbolts

• Pre-set with random 6-digit • Rugged chassis and escutcheons
programming code to add and with vandal resistant free-spin-
delete user codes, and two ran- ning deadbolt turn
dom 4-digit user codes • Silicone rubber, wear-resistant
• 19 user code capacity; 10,000 buttons with blue LED back-
user code combinations avail- light
able • Patented commercial grade
Schlage • Warning sounds after four in- clutching motor drive tested to
one million cycles
correct codes entered; keypad
disabled for 30 seconds • Backset: Fits 2-3/8˝ to 2-3/4˝
BE365PLY619 • Turn-Lock feature allows the backsets with Triple-Option™
BE365CAM505 user to lock and leave without of square corner, radius corner
a key or code entered and circular drive-in faceplates.
Mfg # Design Finish EZ # • Mechanical key override. Cylin- • Door Range: 1-3/8˝ to 1-3/4˝
BE365CAM505 Camelot Lifetime Brass 087154 der is 5-pin solid brass C key- • Certification: ANSI A156.5-2001
BE365CAM619 Camelot Satin Nickle 087155 way. Grade 2 auxiliary locks,
BE365CAM626 Camelot Satin Chrome 087156 • 9-volt battery included. Average
three-year battery life
BE365PLY505 Plymouth Lifetime Brass 087151
BE365PLY619 Plymouth Satin Nickle 087152
BE365PLY626 Plymouth Satin Chrome 087153 B Series Bolts 12 100
12 103
Mfg # Type Backset Face Diameter Finish Series EZ #
12 100 605 Deadlatch 2-3/8” 1-1/8” x 2-1/4” 1” Polished Brass B250 012712
12 100 626 Deadlatch 2-3/8” 1-1/8” x 2-1/4” 1” Satin Chrome B250 027557
12 103 605 Deadlatch 2-3/4” 1-1/8” x 2-1/4” 1” Polished Brass B250 012713 12 239
12 103 626 Deadlatch 2-3/4” 1-1/8” x 2-1/4” 1” Satin Chrome B250 012714
12 224 626 Bolt 5” 1-1/8” x 2-1/4” 7/8” Satin Chrome B100, H Series 037105
12 239 626 Drive-in Bolt 2-3/8” 1” Satin Chrome B100, H Series 012731 12 268
12 268 626 Drive-in Bolt Adjustable 1” Satin Chrome BC100 073844
12 274 605 Bolt Adjustable 1” x 2-1/4” 7/8” Polished Brass BC100 073436
12 274 612 Bolt Adjustable 1” x 2-1/4” 7/8” Satin Bronze BC100 077908 12 274
12 274 626 Bolt Adjustable 1” x 2-1/4” 7/8” Satin Chrome BC100 073437
12 291 605 Bolt Adjustable 1-1/8” x 2-1/4” 1” Polished Brass B500 100117
12 291 626 Bolt Adjustable 1-1/8” x 2-1/4” 1” Satin Stainless B500 100116
12 630
12 630 605 Bolt 2-3/8” 1-1/8” x 2-1/4” 1” Polished Brass B600, 700, 800 031032 12 631
12 630 626 Bolt 2-3/8” 1-1/8” x 2-1/4” 1” Satin Chrome B600, 700, 800 031033
12 631 605 Bolt 2-3/4” 1-1/8” x 2-1/4” 1” Polished Brass B600, 700, 800 031030
12 631 626 Bolt 2-3/4” 1-1/8” x 2-1/4” 1” Satin Chrome B600, 700, 800 031031 12 640
12 633 626 Bolt 5” 1-1/8” x 2-1/4” 1” Satin Chrome B600, 700, 800 039548 12 641
12 640 626 Drive-in Bolt 2-3/8” 1-1/8” Satin Chrome B600, 700, 800 031034
12 641 626 Drive-in Bolt 2-3/4” 1-1/8” Satin Chrome B600, 700, 800 031035
10 064 Drive-In Thimble Strike 1-3/8” Zinc All 012667 10-064

208
