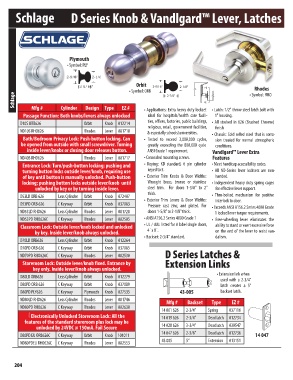

Schlage D Series Knob & Vandlgard™ Lever, Latches

Plymouth
• Symbol: PLY

2-9/16" 2-1/8
Orbit
2-5/16" 2-9/16" 2-1/8" Rhodes
• Symbol: ORB • Symbol: RHO
Schlage Mfg # Cylinder Design Type EZ # 2-7/8"

Passage Function: Both knobs/levers always unlocked • Applications: Extra heavy duty lockset • Latch: 1/2" throw steel latch bolt with
1" housing.
ideal for hospitals/health care facili-
D10S ORB626 Orbit Knob 012214 ties, offices, factories, public buildings, • All stocked in 626 (Brushed Chrome)
religious, retail, government facilities, finish
ND10S RHO626 Rhodes Lever 081710 & especially schools/universities. • Chassis: Cold rolled steel that is corro-
Bath/Bedroom Privacy Lock: Push-button locking. Can • Tested to exceed 3,000,000 cycles, sion treated for normal atmospheric
be opened from outside with small screwdriver. Turning greatly exceeding the 800,000 cycle conditions.
inside lever/knobs or closing door releases button. ANSI Grade 1 requirement. Vandlgard™ Lever Extra
ND40S RHO626 Rhodes Lever 081717 • Concealed mounting screws. Features
Entrance Lock: Turn/push-button locking; pushing and • Keying: KD standard, 6 pin cylinder • Meet handicap accessibility codes.
turning button locks outside lever/knob, requiring use keyed to 5. • All ND-Series lever locksets are non-
of key until button is manually unlocked. Push-button • Exterior Trim Knobs & Door Widths: handed.
locking; pushing button locks outside lever/knob until Wrought brass, bronze or stainless • Independent heavy duty spring cages
unlocked by key or by turning inside lever. steel trim. For doors 1-3/8" to 2" for effective lever support.
thick.
D53LD ORB 626 Less Cylinder Orbit Knob 072407 • Thru-bolted mechanism for positive
• Exterior Trim Levers & Door Widths: interlock to door.
D53PD ORB 626 C Keyway Orbit Knob 037083 Pressure cast zinc, and plated. For • Exceeds ANSI A156.2 Series 4000 Grade
ND53LD RHO626 Less Cylinder Rhodes Lever 081728 doors 1-5/8” to 2-1/8” thick. 1 locked lever torque requirements.
ND53PD RHO626C C Keyway Rhodes Lever 082505 • ANSI A156.2 Series 4000 Grade 1 • Free-wheeling lever eliminates the
Classroom Lock: Outside lever/knob locked and unlocked • UL / cUL: listed for A label single doors, ability to stand or exert excessive force
4´ x 8´.
by key. Inside lever/knob always unlocked. on the end of the lever to resist van-
• Backset: 2-3/4" standard. dalism.
D70LD ORB626 Less Cylinder Orbit Knob 012264
D70PD ORB 626 C Keyway Orbit Knob 037085
ND70PD RHO626C C Keyway Rhodes Lever 082530 D Series Latches &
Storeroom Lock: Outside lever/knob fixed. Entrance by Extension Links
key only. Inside lever/knob always unlocked.
• Extension link when
D80LD ORB626 Less Cylinder Orbit Knob 012279
used with a 2-3/4”
D80PD ORB 626 C Keyway Orbit Knob 037089 latch creates a 5”
D80PD PLY626 C Keyway Plymouth Knob 027535 43-005 backset latch.
ND80LD RHO626 Less Cylinder Rhodes Lever 081746 Mfg # Backset Type EZ #
ND80PD RHO626 C Keyway Rhodes Lever 082630
14 001 626 2-3/4” Spring 037116
Y Electronically Unlocked Storeroom Lock: All the 14 019 626 2-3/4” Deadlatch 012734
features of the standard storeroom plus lock may be 14 028 626 3-3/4” Deadlatch 039547
unlocked by 24VDC @ 150mA. Fail Secure
14 047 626 2-3/8” Deadlatch 012736
D80PD EU ORB626C C Keyway Orbit Knob 101011 14 047
43 005 5” Extension 013151
ND80PDEU RHO626C C Keyway Rhodes Lever 082553

204
