P. 38

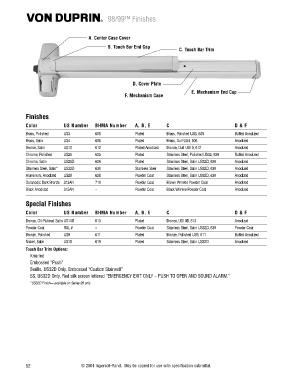

98/99™ Finishes
A. Center Case Cover
B. Touch Bar End Cap
C. Touch Bar Trim
D. Cover Plate
E. Mechanism End Cap
F. Mechanism Case
Finishes
Color US Number BHMA Number A, B, E C D & F
Brass, Polished US3 605 Plated Brass, Polished US3, 605 Buffed Anodized
Brass, Satin US4 606 Plated Brass, Dull US4, 606 Anodized
Bronze, Satin US10 612 Plated/Anodized Bronze, Dull US10, 612 Anodized
Chrome, Polished US26 625 Plated Stainless Steel, Polished US32, 629 Buffed Anodized
Chrome, Satin US26D 626 Plated Stainless Steel, Satin US32D, 630 Anodized
Stainless Steel, Satin* US32D 630 Stainless Steel Stainless Steel, Satin US32D, 630 Anodized
Aluminum, Anodized US28 628 Powder Coat Stainless Steel, Satin US32D, 630 Anodized
Duranodic Dark Bronze 313AN 710 Powder Coat Brown Wrinkle Powder Coat Anodized
Black Anodized 315AN – Powder Coat Black Wrinkle Powder Coat Anodized
Special Finishes
Color US Number BHMA Number A, B, E C D & F
Bronze, Oil-Rubbed Satin US10B 613 Plated Bronze, US10B, 613 Anodized
Powder Coat RAL # – Powder Coat Stainless Steel, Satin US32D, 630 Powder Coat
Bronze, Polished US9 611 Plated Bronze, Polished US9, 611 Buffed Anodized
Nickel, Satin US15 619 Plated Stainless Steel, Satin US32D Anodized
Touch Bar Trim Options:
Knurled
Embossed “Push”
Braille, US32D Only, Embossed “Caution Stairwell”
SS, US32D Only, Red silk screen lettered “EMERGENCY EXIT ONLY – PUSH TO OPEN AND SOUND ALARM.”
*US32D Finish—available on Series 98 only
52 © 2004 Ingersoll-Rand. May be copied for use with specification submittal.
