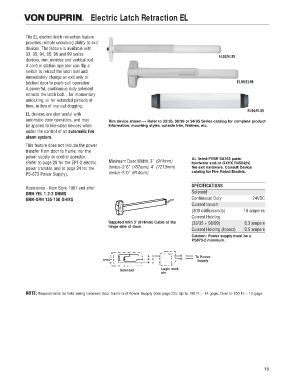

Electric Latch Retraction EL

The EL electric latch retraction feature
provides remote unlocking ability to exit
devices. The feature is available with
33, 35, 94, 95, 98 and 99 series
EL33/EL35
devices, rim, mortise and vertical rod.
A control station operator can flip a
switch to retract the latch bolt and
immediately change an exit only or
latched door to push-pull operation. EL98/EL99
A powerful, continuous duty solenoid
retracts the latch bolt…for momentary
unlocking, or for extended periods of
time, in lieu of manual dogging.
EL94/EL95
EL devices are also useful with
automatic door operators, and may Rim device shown — Refer to 33/35, 98/99 or 94/95 Series catalog for complete product
be applied to fire-rated devices when information, mounting styles, outside trim, finishes, etc.
under the control of an automatic fire
alarm system.
This feature does not include the power
transfer from door to frame, nor the
power supply or control operator. UL listed FVSR SA163 panic
(Refer to page 25 for the EPT-2 electric Minimum Door Width: 3´ (914mm) hardware and/or GXHX R4504(N)
power transfer, and to page 24 for the device–2´6˝ (762mm), 4´ (1219mm) fire exit hardware. Consult Device
catalog for Fire Rated Models.
PS-873 Power Supply). device–3´0˝ (914mm)

SPECIFICATIONS
Resistance - New Style 1987 and after
Solenoid
GRN-YEL 1.2-2 OHMS
GRN-ORN 135-150 OHMS Continuous Duty 24VDC
Current Inrush
(300 milliseconds) 16 amperes
Current Holding
Supplied with 3’ (914mm) Cable at the (33/35 + 98/99) 0.3 ampere
hinge side of door.
Current Holding (Inpact) 0.5 ampere
Caution: Power supply must be a
PS873-2 minimum.

To Power
Supply
Logic mod-
Solenoid
ule

NOTE:Requirements for field wiring between door frame and Power Supply (See page 23). Up to 100 Ft. - 14 gage. Over to 100 Ft. - 12 gage.
