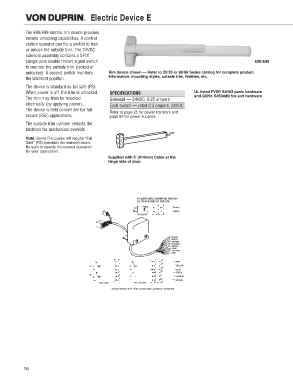

Electric Device E

The E98/E99 electric rim device provides
remote unlocking capabilities. A control
station operator can flip a switch to lock
or unlock the outside trim. The 24VDC
solenoid assembly contains a SPDT
(single pole double throw) signal switch E98/E99
to monitor the outside trim (locked or
unlocked). A second switch monitors Rim device shown — Refer to 33/35 or 98/99 Series catalog for complete product
information, mounting styles, outside trim, finishes, etc.
the latchbolt position.
The device is standard as fail safe (FS).
When power is off, the trim is unlocked. SPECIFICATIONS UL listed FVSR SA163 panic hardware
The trim may then be relocked Solenoid — 24VDC, 0.25 ampere and GXHX R4504(N) fire exit hardware.
electrically (by applying power). Each switch — rated 0.3 ampere, 24VDC
The device is field convertible for fail
Refer to page 25 for power transfers and
secure (FSE) applications. page 24 for power supplies.
The outside trim cylinder retracts the
latchbolt for mechanical override.

Note: Some Fire codes will require “Fail
Safe” (FS) operation for stairwell doors.
Be sure to specify the correct operation
for your application.
Supplied with 3’ (914mm) Cable at the
hinge side of door.

S1-LATCHBOLT MONITOR SWITCH
S2-TRIM MONITOR SWITCH
BLACK
WHITE
SOLENOID

BLACK
WHITE
BROWN
ORANGE
GREEN
BLUE
YELLOW
RED
1
1 1 RED
2
S1 2 2 YELLOW
3
3 3 BLUE
4
4 4 GREEN
S2 5
5 5 ORANGE
6
6 6 BROWN
FAIL SAFE FAIL SECURE
WIRING SHOWN WITH TRIM LOCKED AND LATCHBOLT EXTENDED

16
