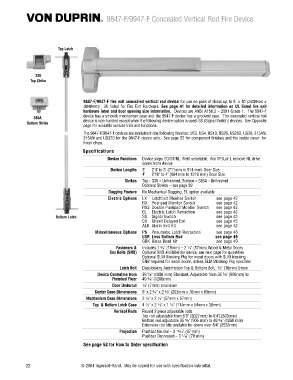

9847-F/9947-F Concealed Vertical Rod Fire Device

Top Latch

338
Top Strike

9847-F/9947-F fire exit concealed vertical rod device for use on pairs of doors up to 8´ x 10´(2438mm x
3048mm) , UL listed for Fire Exit Hardware. See page 41 for detailed information on UL listed fire exit
hardware label and door opening size information. Devices are ANSI A156.3 – 2001 Grade 1. The 9847-F
device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod
385A
device is non-handed except when the following device option is used: SS (Signal Switch) devices. See Opposite
Bottom Strike
page for available outside trim and functions.
The 9847-F/9947-F devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 9847-F device only. See page 52 for component finishes and the inside cover for
finish chips.
Specifications
Device Functions Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive
screw from device
Device Lengths 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes Top - 338 – Unfinished, Bottom – 385A - Unfinished
Optional Strikes – see page 39
Dogging Feature No Mechanical Dogging, EL option available
Electric Options LX Latchbolt Monitor Switch see page 42
RX Pushpad Monitor Switch see page 42
RX2 Double Pushpad Monitor Switch see page 42
EL Electric Latch Retraction see page 43
Bottom Latch SS Signal Switch see page 43
CX Chexit Delayed Exit see page 45
ALK Alarm Exit Kit see page 42
Miscellaneous Options PN Pneumatic Latch Retraction see page 48
LBR Less Bottom Rod see page 49
GBK Glass Bead Kit see page 49
Fasteners & Includes 1 ³₄" (19mm) – 2 ¹₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities
Optional SLM Blocking Pkg for wood doors with SLM blocking
SNB required for wood doors, unless SLM Blocking Pkg specified
Latch Bolt Deadlocking Anti-friction Top & Bottom Bolt, ⁵₈" (16mm) throw
Device Centerline from 39 ⁵₈" (1006 mm) Standard, Adjustable from 35 ⁵₈" (905mm) to
Finished Floor 49 ⁵₈" (1260mm)
Door Undercut ¹₄" (7mm) maximum
Center Case Dimensions 8" x 2 ³₄" x 2 ³₈" (203mm x 70mm x 60mm)
Mechanism Case Dimensions 2 ¹₄" x 2 ¹₄" (57mm x 57mm)
Top & Bottom Latch Case 4 ¹₂" x 2 ¹₈" x 1 ¹₂" (114mm x 54mm x 38mm)
Vertical Rods Round 2 piece adjustable rods
Top rod adjustable from 6’8" (2027mm) to 8’4"(2533mm)
Bottom rod adjustable 35 ⁵₈" (905 mm) to 49 ⁵₈" (1260 mm)
Extension rod kits available for doors over 8’4" (2533mm)
Projection Pushbar Neutral – 3 ¹³₁₆" (97 mm)
Pushbar Depressed – 3 ¹₁₆" (78 mm)
See page 53 for How to Order specification
