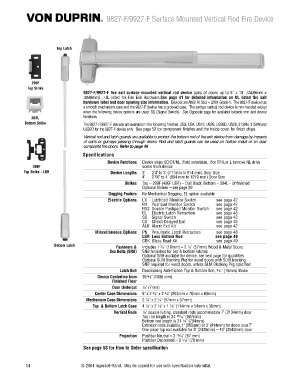

9827-F/9927-F Surface Mounted Vertical Rod Fire Device

Top Latch

299F
Top Strike
9827-F/9927-F fire exit surface mounted vertical rod device pairs of doors up to 8´ x 10´ (2438mm x
3048mm) , UL listed for Fire Exit Hardware.See page 41 for detailed information on UL listed fire exit
hardware label and door opening size information. Devices are ANSI A156.3 – 2001 Grade 1. The 9827-F device has
a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except
when the following device options are used: SS (Signal Switch). See Opposite page for available outside trim and device
304L functions.
Bottom Strike The 9827-F/9927-F devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN, 315AN and
US32D for the 9827-F device only. See page 52 for component finishes and the inside cover for finish chips.
Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts
of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad
composite fire doors. Refer to page 49
Specifications
Device Functions Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive
499F screw from device
Top Strike - LBR Device Lengths 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes Top – 299F (499F LBR) – Dull Black, Bottom – 304L - Unfinished
Optional Strikes – see page 39
Dogging Feature No Mechanical Dogging, EL option available
Electric Options LX Latchbolt Monitor Switch see page 42
RX Pushpad Monitor Switch see page 42
RX2 Double Pushpad Monitor Switch see page 42
EL Electric Latch Retraction see page 43
SS Signal Switch see page 43
CX Chexit Delayed Exit see page 45
ALK Alarm Exit Kit see page 42
Miscellaneous Options PN Pneumatic Latch Retraction see page 48
LBR Less Bottom Rod see page 49
GBK Glass Bead Kit see page 49
Bottom Latch
Fasteners & Includes 1 ³₄" (19mm) – 2 ¹₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) SNB furnished for top & bottom latches
Optional SNB available for device, see next page for quantities
Optional SLM Blocking Pkg for wood doors with SLM blocking
SNB required for wood doors, unless SLM Blocking Pkg specified
Latch Bolt Deadlocking Anti-friction Top & Bottom Bolt, ⁵₈ " (16mm) throw
Device Centerline from 39 ⁵₈" (1006 mm)
Finished Floor
Door Undercut ¹₄" (7mm)
Center Case Dimensions 8" x 2 ³₄" x 2 ³₈" (203mm x 70mm x 60mm)
Mechanism Case Dimensions 2 ¹₄" x 2 ¹₄" (57mm x 57mm)
Top & Bottom Latch Case 4 ¹₂" x 2 ¹₈" x 1 ¹₂" (114mm x 54mm x 38mm)
Vertical Rods ¹₂" square tubing, standard rods accommodate 7’ (2134mm) door
Top rod length is 34 ¹⁵₁₆" (887mm)
Bottom rod length is 31 ¹₄" (794mm)
Extension rods available, 1’ (205mm) or 3’ (914mm) for doors over 7’
One piece top rod available for 8’ (2438mm) – 10’ (3048mm) door
Projection Pushbar Neutral – 3 ¹³₁₆" (97 mm)
Pushbar Depressed – 3 ¹₁₆" (78 mm)
See page 53 for How to Order specification

14 © 2004 Ingersoll-Rand. May be copied for use with specification submittal.
