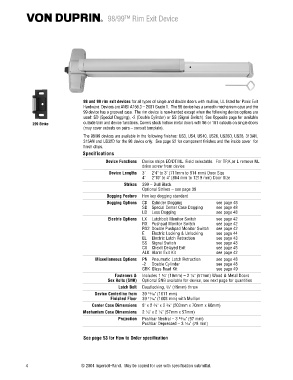

98/99™ Rim Exit Device

98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit
Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 98 device has a smooth mechanism case and the
99 device has a grooved case. The rim device is non-handed except when the following device options are
used: SD (Special Dogging), -2 (Double Cylinder) or SS (Signal Switch). See Opposite page for available
299 Strike outside trim and device functions. Covers stock hollow metal doors with 86 or 161 cutouts on single doors
(may cover cutouts on pairs – consult template).
The 98/99 devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 98 device only. See page 52 for component finishes and the inside cover for
finish chips.
Specifications
Device Functions Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL
drive screw from device
Device Lengths 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes 299 – Dull Black
Optional Strikes – see page 39
Dogging Feature Hex key dogging standard
Dogging Options CD Cylinder Dogging see page 48
SD Special Center Case Dogging see page 48
LD Less Dogging see page 48
Electric Options LX Latchbolt Monitor Switch see page 42
RX Pushpad Monitor Switch see page 42
RX2 Double Pushpad Monitor Switch see page 42
E Electric Locking & Unlocking see page 44
EL Electric Latch Retraction see page 43
SS Signal Switch see page 43
CX Chexit Delayed Exit see page 45
ALK Alarm Exit Kit see page 42
Miscellaneous Options PN Pneumatic Latch Retraction see page 48
-2 Double Cylinder see page 48
GBK Glass Bead Kit see page 49
Fasteners & Includes 1 ³₄" (19mm) – 2 ¹₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities
Latch Bolt Deadlocking, ³₄" (19mm) throw
Device Centerline from 39 ¹³₁₆" (1011 mm)
Finished Floor 39 ¹¹₁₆" (1008 mm) with Mullion
Center Case Dimensions 8" x 2 ³₄" x 2 ³₈" (203mm x 70mm x 60mm)
Mechanism Case Dimensions 2 ¹₄" x 2 ¹₄" (57mm x 57mm)
Projection Pushbar Neutral – 3 ¹³₁₆" (97 mm)
Pushbar Depressed – 3 ¹₁₆" (78 mm)

See page 53 for How to Order specification
