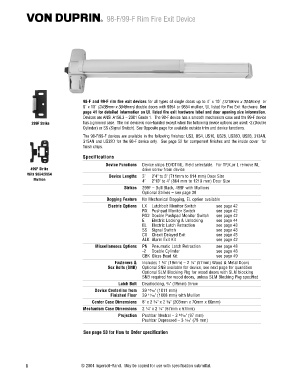

98-F/99-F Rim Fire Exit Device

98-F and 99-F rim fire exit devices for all types of single doors up to 4´ x 10´ (1219mm x 3048mm) or
8´ x 10´ (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware. See
page 41 for detailed information on UL listed fire exit hardware label and door opening size information.
Devices are ANSI A156.3 – 2001 Grade 1. The 98-F device has a smooth mechanism case and the 99-F device
299F Strike has a grooved case. The rim device is non-handed except when the following device options are used: -2 (Double
Cylinder) or SS (Signal Switch). See Opposite page for available outside trim and device functions.
The 98-F/99-F devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 98-F device only. See page 52 for component finishes and the inside cover for
finish chips.
Specifications
Device Functions Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL
499F Strike drive screw from device
With 9854/9954
Device Lengths 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
Mullion 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes 299F – Dull Black, 499F with Mullions
Optional Strikes – see page 39
Dogging Feature No Mechanical Dogging, EL option available
Electric Options LX Latchbolt Monitor Switch see page 42
RX Pushpad Monitor Switch see page 42
RX2 Double Pushpad Monitor Switch see page 42
E Electric Locking & Unlocking see page 44
EL Electric Latch Retraction see page 43
SS Signal Switch see page 43
CX Chexit Delayed Exit see page 45
ALK Alarm Exit Kit see page 42
Miscellaneous Options PN Pneumatic Latch Retraction see page 48
-2 Double Cylinder see page 48
GBK Glass Bead Kit see page 49
Fasteners & Includes 1 ³₄" (19mm) – 2 ¹₄" (57mm) Wood & Metal Doors
Sex Bolts (SNB) Optional SNB available for device, see next page for quantities
Optional SLM Blocking Pkg for wood doors with SLM blocking
SNB required for wood doors, unless SLM Blocking Pkg specified
Latch Bolt Deadlocking, ³₄" (19mm) throw
Device Centerline from 39 ¹³₁₆" (1011 mm)
Finished Floor 39 ¹¹₁₆" (1008 mm) with Mullion
Center Case Dimensions 8" x 2 ³₄" x 2 ³₈" (203mm x 70mm x 60mm)
Mechanism Case Dimensions 2 ¹₄" x 2 ¹₄" (57mm x 57mm)
Projection Pushbar Neutral – 3 ¹³₁₆" (97 mm)
Pushbar Depressed – 3 ¹₁₆" (78 mm)

See page 53 for How to Order specification

6 © 2004 Ingersoll-Rand. May be copied for use with specification submittal.
