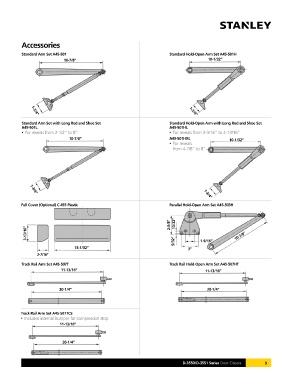

Accessories
Standard Arm Set A45-501 Standard Hold-Open Arm Set A45-501H
10-7/8” 10-1/32”
1-3/4”
1-3/4”
Standard Arm Set with Long Rod and Shoe Set Standard Hold-Open Arm with Long Rod and Shoe Set
A45-501L A45-501HL
• For reveals from 2-1/2” to 8” • For reveals from 3-3/16” to 4-13/16”
10-7/8” A45-501HXL 10-1/32”
• For reveals
from 4-7/8” to 8”
1-3/4”
1-3/4”
Full Cover (Optional) C-455 Plastic Parallel Hold-Open Arm Set A45-503H
2-5/8” 13/32”
3-13/16” 10-7/8”
13-1/32” 9/32” 3” 1-9/16”
2-7/16”
Track Rail Arm Set A45-507T Track Rail Hold-Open Arm Set A45-507HT
11-13/16” 11-13/16”
20-1/4” 20-1/4”
Track Rail Arm Set A45-507TCS
• Includes internal bumper for compression stop
11-13/16”
20-1/4”
D-3550/D-3551 Series Door Closers 9
