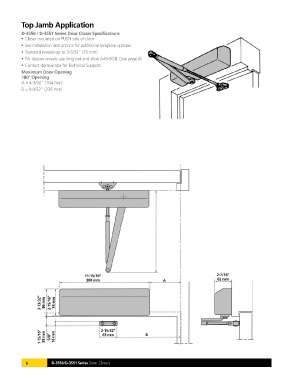

Top Jamb Application

D-3550 / D-3551 Series Door Closer Specifications
• Closer mounted on PUSH side of door
• See installation instructions for additional template options.
• Standard reveals up to 3-5/32” (78 mm)
• For deeper reveals use long rod and shoe A45-501L (See page 8)
• Contact dormakaba for Technical Support.
Maximum Door Opening
180° Opening
A = 4-3/32” (104 mm)
B = 9-9/32” (236 mm)

11-15/16” 2-7/16”
304 mm A 62 mm

3-13/32” 86 mm 2-15/16” 74 mm

1-15/16” 33 mm 5/8” 16 mm 2-15/32” B
63 mm

6 D-3550/D-3551 Series Door Closers
