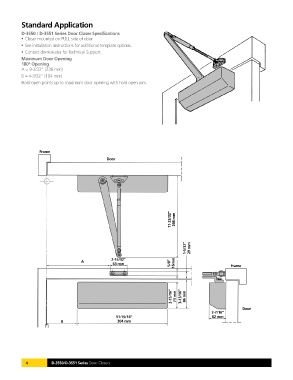

Standard Application

D-3550 / D-3551 Series Door Closer Specifications
• Closer mounted on PULL side of door
• See installation instructions for additional template options.
• Contact dormakaba for Technical Support.
Maximum Door Opening
180° Opening
A = 9-3/32” (236 mm)
B = 4-3/32” (104 mm)
Hold-open points up to maximum door opening with hold open arm.

Frame
Door

11-23/32” 298 mm

1-5/32” 29 mm

A 2-15/32”
63 mm 5/8” 16mm Frame

2-15/16” 74 mm 3-13/16” 86 mm

Door
2-7/16”
11-15/16” 62 mm
B 304 mm

4 D-3550/D-3551 Series Door Closers
