P. 19

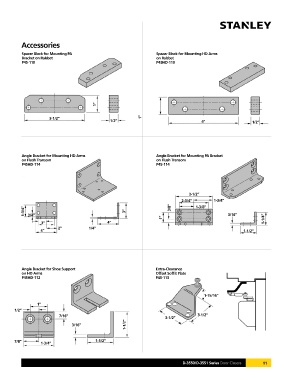

Accessories
Spacer Block for Mounting PA Spacer Block for Mounting HD Arms
Bracket on Rabbet on Rabbet
P45-110 P45HD-110
1”
3-1/2” 1”
1/2” 4” 1/2”
Angle Bracket for Mounting HD Arms Angle Bracket for Mounting PA Bracket
on Flush Transom on Flush Transom
P45HD-114 P45-114
3-1/2”
2-3/4” 1-3/4”
1-3/4” 3” 3/8” 1-3/8”
3/4”
1” 3/16” 1-1/4”
3” 4”
2” 1/4”
4” 1-1/2”
Angle Bracket for Shoe Support Extra-Clearance
on HD Arms Offset Soffit Plate
P45HD-112 P45-113
1-15/16”
1”
1/2”
7/16” 3-1/2” 3-1/2”
1-1/2”
3/16”
7/8” 1-3/4” 1-1/2”
D-3550/D-3551 Series Door Closers 11
