T ABLE OF CONTENTS TABLE OF CONTENTS Page Page

Features .............................................................................................................2 Hand of Door ...................................................................................................8
Specification .....................................................................................................3 Mortise Sample Specification ....................................................................9
Universal Lock Concept ............................................................................4-5 Functions ..................................................................................................10-13
How To Order .............................................................................................. 6-7 48H & 49H High Security Specification ...............................................14
Special Features ..............................................................................................8 48H & 49H Function & How To Order ...................................................14
Service Equipment .........................................................................................8 Standard & High Security Cylinders ......................................................15

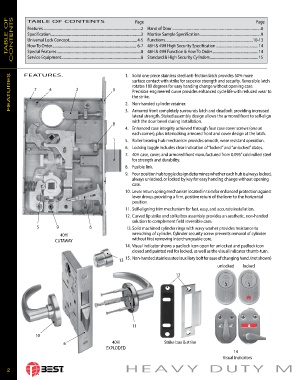

FEA TURES FEATURES . 2 3 1. Solid one-piece stainless steel anti-friction latch provides 50% more
surface contact with strike for superior strength and security. Reversible latch
rotates 180 degrees for easy handing change without opening case.
4
7
Precision-engineered curve provides enhanced cycle life with reduced wear to
the strike.
2. Non-handed cylinder retainer.
3. Armored front completely surrounds latch and deadbolt providing increased
lateral strength. Staked assembly design allows the armored front to self-align
with the door bevel during installation.
8
4. Enhanced case integrity achieved through four case cover screws (one at
each corner), plus interlocking armored front and cover design at the latch.
1 5. Roller bearing hub mechanism provides smooth, wear resistant operation.
6. Locking toggle includes clear indication of “locked” and “unlocked” states.
7. 40H case, cover, and armored front manufactured from 0.095” cold rolled steel
for strength and durability.
8. Fusible link.
9. Four position hub toggle design determines whether each hub is always locked,
always unlocked, or locked by key for easy handing change without opening
case.
10. Lever return spring mechanism located in trim for enhanced protection against
lever droop, providing a firm, positive return of the lever to the horizontal
position.
11. Self-aligning trim mechanism for fast, easy, and accurate installation.
12. Curved lip strike and strike box assembly provides an aesthetic, non-handed
solution to complement field reversible case.
5 9 6 13. Solid machined cylinder rings with wavy washer provides resistance to
40H wrenching of cylinder. Cylinder security screw prevents removal of cylinder
CUTAWAY without first removing interchangeable core.
14. Visual indicator shows a padlock icon open for unlocked and padlock icon
closed and painted red for locked, as well as the visual indicator thumb-turn.
13 15. Non-handed stainless steel auxiliary bolt for ease of changing hand. (not shown)
unlocked locked

12

11

10
6 40H Strike box & strike
EXPLODED
14
Visual Indicators

HEAVY DUTY MORTISE LOCKS
2
