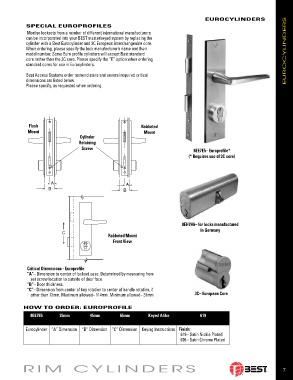

EUROCYLINDERS
SPECIAL EUROPROFILES
Mortise locksets from a number of different international manufacturers
can be in cor po rat ed into your BEST mas ter keyed system by replacing the
cylinder with a Best Eurocylinder and 3C Eu ro pe an interchangeable core.
When ordering, please specify the lock man u fac tur er’s name and their
model number. Some Euro profile cyl in ders will accept Best stan dard EUROCYLINDERS
core rather than the 3C core. Please specify the “E” option when ordering
stan dard cores for use in Eurocylinders.

Best Access Systems order nomenclature and several re quired critical
dimensions are listed below.
Please specify, as requested when or der ing.

Flush Rab bet ed
Mount Mount
Cylinder
Retaining
Screw 8EE7E5– Europrofile*
(* Requires use of 3C core)

8EH7H6– for locks manufactured
in Germany
Rabbeted Mount
Front View

Critical Dimensions - Europrofile
“A”– Dimension to center of lockset case. De ter mined by measuring from
set screw location to outside of door face.
“B”– Door thickness.
“C”– Dimension from center of key rotation to center of handle rotation, if
other than 72mm. Maximum allowed– 114mm. Minimum allowed– 37mm 3C– European Core

HOW TO ORDER: EUROPROFILE
8EE7E5 25mm 45mm 65mm Keyed Alike 619

Eurocylinder “A” Dimension “B” Dimension “C” Dimension Keying Instructions Finish:
619 - Satin Nickle Plated
626 - Satin Chrome Plated
