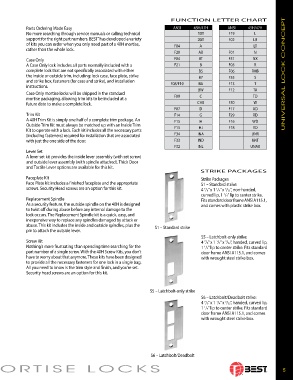

P. 10
FUNCTION LETTER CHART
Parts Ordering Made Easy ANSI 45H/47H ANSI 45H/47H
No more searching through service manuals or calling technical 1DT F19 L
support for the right part numbers. BEST has developed a variety 2DT F02 LB
®
of kits you can order when you only need part of a 40H mortise, F04 A LT
rather than the whole lock.
F20 AB F01 N
Case Only F04 AT F31 NX
A Case Only lock includes all parts normally included with a F21 B F05 R
complete lock that are not specifically associated with either B5 F06 RHB
the inside or outside trim, including: lock case, face plate, strike B7 F35 S UNIVERSAL LOCK CONCEPT
and strike box, fasteners (for case and strike), and installation
instructions. F08/F10 BA F13 T
Case Only mortise locks will be shipped in the standard BW F12 TA
mortise packaging, allowing trim kits to be included at a F09 C TD
future date to make a complete lock. CHB F30 W
F07 D F17 AD
Trim Kit F14 G F29 RD
A 40H Trim Kit is simply one half of a complete trim package. An F15 H F16 WD
Outside Trim Kit must always be matched up with an Inside Trim F15 HJ F18 YD
Kit to operate with a lock. Each kit includes all the necessary parts
(including fasteners) required for installation that are associated F34 INA UNR
with just the one side of the door. F33 IND UNT
F32 INL UNAB
Lever Set
A lever set kit provides the inside lever assembly (with set screw)
and outside lever assembly (with spindle attached). Thick Door
and Tactile Lever options are available for this kit.
STRIKE PACKAGES
Faceplate Kit Strike Packages
Face Plate kit includes a finished faceplate and the appropriate S1 – Standard strike:
screws. Security Head screws are an option for this kit. 4 /8” x 1 /4” x /32”, non-handed,
1
7
3
curved lip, 1 /4” lip to center strike.
1
Replacement Spindle Fits standard door frame ANSI A115.1,
As a security feature, the outside spindle on the 40H is designed and comes with plastic strike box.
to twist off during abuse before any internal damage to the
lock occurs. The Replacement Spindle kit is a quick, easy, and
inexpensive way to replace any spindles damaged by attack or
abuse. This kit includes the inside and outside spindles, plus the S1 – Standard strike
pin to attach the outside lever.
S5 – Latchbolt-only strike:
Screw Kit 4 /8” x 1 /4” x /32”, handed, curved lip,
7
1
3
Nothing’s more frustrating than spending time searching for the 1 /4” lip to center strike. Fits standard
1
part number of a single screw. With the 40H Screw Kits, you don’t door frame ANSI A115.1, and comes
have to worry about that anymore. These kits have been designed with wrought steel strike box.
to provide all the necessary fasteners for one lock in a single bag.
All you need to know is the trim style and finish, and you’re set.
Security head screws are an option for this kit.
S5 – Latchbolt-only strike
S6 – Latchbolt/Deadbolt strike:
4 /8” x 1 /4” x /32”, handed, curved lip,
3
1
7
1 /4” lip to center strike. Fits standard
1
door frame ANSI A115.1, and comes
with wrought steel strike box.
S6 – Latchbolt/Deadbolt
ORTISE LOCKS 5
