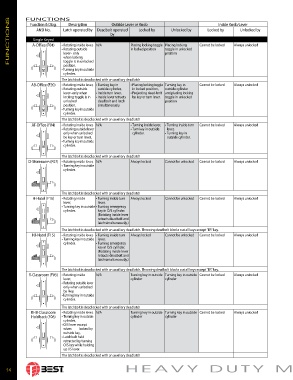

P. 15
FUNCTIONS FUNCTIONS Description Deadbolt operated Placing locking toggle Placing locking Cannot be locked Always unlocked
Function & Diag.
Outside Lever or Knob
Inside Knob/Lever
Unlocked by
Latch operated by
ANSI No.
Locked by
Unlocked by
Locked by
by
Single Keyed
A-Office (F04)
• Rotating inside lever, N/A
in locked position
• Rotating outside
toggle in unlocked
position
lever– only
when locking
toggle is in unlocked
position,
• Turning key in outside
cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch
AB-Office (F20) • Rotating inside lever, • Turning key in • Placing locking toggle Turning key in Cannot be locked Always unlocked
• Rotating outside outside cylinder, in locked position, outside cylinder
lever–only when • Inside turn lever, • Projecting dead-bolt and placing locking
locking toggle is in • Inside lever retracts by key or turn lever. toggle in unlocked
unlocked deadbolt and latch position
position, simultaneously.
• Turning key in outside
cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch
AT-Office (F04) • Rotating inside lever, N/A • Turning inside lever, • Turning inside turn Cannot be locked Always unlocked
• Rotating outside lever • Turn key in outside lever,
only when unlocked cylinder. • Turning key in
by key or turn lever, outside cylinder.
• Turning key in outside
cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch
D-Storeroom (F07) • Rotating inside lever, N/A Always locked Cannot be unlocked Cannot be locked Always unlocked
• Turning key in outside
cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch
H-Hotel (F15) • Rotating inside • Turning inside turn Always locked Cannot be unlocked Cannot be locked Always unlocked
lever, lever,
• Turning key in outside • Turning emergency
cylinder. key in O/S cylinder.
(Rotating inside lever
retracts deadbolt and
latch simultaneously.)
The latchbolt is deadlocked with an auxiliary deadlatch. Throwing deadbolt blocks out all keys except “ER” key.
HJ-Hotel (F15) • Rotating inside lever, • Turning inside turn Always locked Cannot be unlocked Cannot be locked Always unlocked
• Turning key in outside lever,
cylinder. • Turning emergency
key in O/S cylinder.
(Rotating inside lever
retracts deadbolt and
latch simultaneously.)
The latchbolt is deadlocked with an auxiliary deadlatch. Throwing deadbolt blocks out all keys except “ER” key.
R-Classroom (F05) • Rotating inside N/A Turning key in outside Turning key in outside Cannot be locked Always unlocked
lever, cylinder cylinder
• Rotating outside lever
only when unlocked
by key,
•Turning key in outside
cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch
RHB-Classroom • Rotating inside lever, N/A Turning key in outside Turning key in outside Cannot be locked Always unlocked
Holdback (F06) • Turning key in outside cylinder cylinder
cylinder,
• O/S lever except
when locked by
outside key,
• Latchbolt held
retracted by turning
O/S key while holding
up I/S lever.
The latchbolt is deadlocked with an auxiliary deadlatch
HEAVY DUTY MORTISE LOCKS
14
