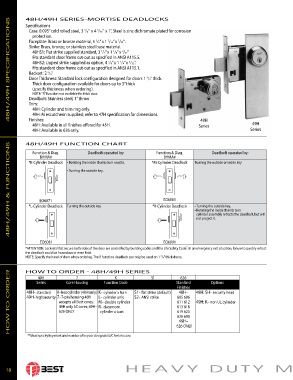

Page 19 - Cerraduras Best

48H/49H SERIES-MORTISE DEAD LOCKS
48H/49H SPECIFICA TIONS
Specifications
Case: 0.095” cold rolled steel, 3 /8” x 4 /16” x 1”. Steel is zinc dichromate plated for corrosion
3
3
protection.
Faceplate: Brass or bronze material, 5 /8” x 1 /16” x /32” .
3
3
7
Strike: Brass, bronze, or stainless steel base material.
48HS1: Flat strike supplied standard, 3 /2” x 1 /8” x /32”
3
1
1
Fits standard door frame cut-out as specified in ANSI A115.5.
48HS2: Lipped strike supplied as option, 4 /8” x 1 /4” x /32”.
1
3
7
Fits standard door frame cut-out as specified in ANSI A115.1.
Backset: 2 /4”
3
Door Thickness: Standard lock configuration designed for doors 1 /4” thick.
3
Thick door configuration available for doors up to 3” thick
(specify thickness when ordering).
NOTE: “R” function not available for thick door.
Deadbolt: Stainless steel, 1” throw
Trim:
48H: Cylinder and trim ring only.
49H: M escutcheon supplied; refer to 47H specification for dimensions.
Finishes: 48H
48H: Available in all finishes offered for 45H. Series 49H
49H: Available in 626 only. Series
48H/49H & FUNCTIONS
48H/49H FUNCTION CHART
Function & Diag. Deadbolt operated by: Function & Diag. Deadbolt operated by:
BHMA# BHMA#
*K-Cylinder Deadlock • Rotating the inside thumb turn rosette, *M-Cylinder Deadlock Turning the outside or inside key
• Turning the outside key.

EO6071 EO6061
*L-Cylinder Deadlock Turning the outside key *R-Cylinder Deadlock • Turning the outside key,
• Rotating the inside thumb turn
cylinder assembly retracts the deadbolt, but will
not project it.

EO6081 EO6091
*ATTENTION: Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code . In an emer gen cy exit situation, failure to quickly retract
®
the deadbolt could be hazardous or even fatal.
NOTE: Specify the hand of door when ordering. The R function deadlock can only be used on 1 /4” thick doors. 626
3
HOW TO ORDER - 48H/49H SERIES
HOW TO ORDER 48H– standard 0–less cylinder (48H only) K– cylinder x turn S1– flat strike (default) Standard 48H: SH– security head
7
K
S!
40H
Core Housing
Options
Function Code
Series
Finishes
48H–
49H– high security 7–7-pin housing 48H
605 606
L– cylinder only
S2– ANSI strike
611 612
49H: K– non UL cylinder
accepts all Best cores; M– double cylinder
49H only 5C cores; 49H– R– classroom
613 618
626 ONLY
619 625
cylinder x turn
626 690
49H–
**Must specify key mark and number of keys or designate L/C for less core. 626 ONLY
HEAVY DUTY MORTISE LOCKS
