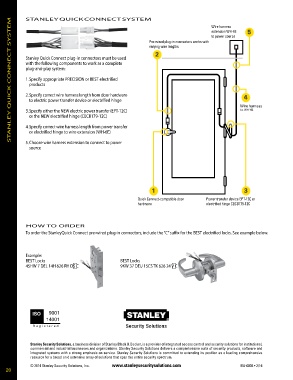

STANLEY QUICK CONNECT SYSTEM
STANLEY QUICK CONNECT SYSTEM
Wire harness
extension WH-6E 5
to power source
Pre-wired plug-in connectors works with
varying wire lengths
2
Stanley Quick Connect plug-in connectors must be used
with the following components to work as a complete
plug-and-play system:

1. Specify appropriate PRECISION or BEST electrified
products

2. Specify correct wire harness length from door hardware 4
to electric power transfer device or electrified hinge
Wire harness
3. Specify either the NEW electric power transfer (EPT-12C) Ex. WH-192
or the NEW electrified hinge (CECB179-12C)
4. Specify correct wire harness length from power transfer
or electrified hinge to wire extension (WH-6E)
5. Choose wire harness extension to connect to power
source

1 3
Quick Connect-compatible door Power transfer device EPT-12C or
hardware electrified hinge CECB179-12C

HOW TO ORDER
To order the StanleyQuick Connect pre-wired plug-in connectors, include the “C” suffix for the BEST electrified locks. See example below.

Example:
BEST Locks BEST Locks
45HW 7 DEL 14H 626 RH DS C 9KW 37 DEU 15CS TK 626 24 V C
