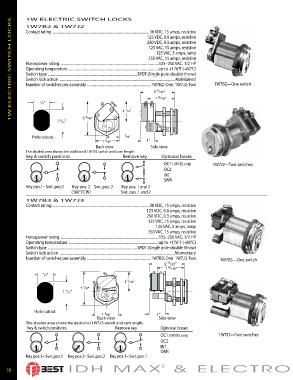

1W ELECTRIC SWITCH LOCKS
1W ELECTRIC SWITCH LOCKS
1W7B2 & 1W7J2
Contact rating ............................................................................................................ 30 VDC, 15 amps, resistive
125 VDC, 0.6 amps, resistive
250 VDC, 0.3 amps, resistive
125 VAC, 15 amps, resistive
125 VAC, 5 amps, lamp
250 VAC, 15 amps, resistive
Horsepower rating ..............................................................................................................125–250 VAC, 1/2 HP
Operating temperature .................................................................................................... up to +176°F (+80°C)
Switch type ....................................................................................................SPDT (Single pole-double throw)
Switch lock action ................................................................................................................................. Maintained
Number of switches per assembly .......................................................................1W7B2: One 1W7J2: Two 1W7B2—One switch

7 /8”

1 /32”
5

Hole cutout

Back view Side view
The shaded area shows the additional 1W7J2 switch and cam length.
Key & switch positions Remove key Optional box es
OC1 (1W7B2 only) 1W7J2—Two switches
OC2
INT
SWR
Key pos.1– Swt. pos.1 Key pos. 2 Swt. pos. 2 Key pos. 1 and 2
(360°CCW) Swt. pos. 1 and 2

1W7B3 & 1W7J3
Contact rating ............................................................................................................ 30 VDC, 15 amps, resistive
125 VDC, 0.6 amps, resistive
250 VDC, 0.3 amps, resistive
125 VAC, 15 amps, resistive
125 VAC, 5 amps, lamp
250 VAC, 15 amps, resistive
Horsepower rating ..............................................................................................................125–250 VAC, 1/2 HP
Operating temperature .................................................................................................... up to +176°F (+80°C)
Switch type ....................................................................................................SPDT (Single pole-double throw)
Switch lock action .................................................................................................................................Momentary
Number of switches per assembly .......................................................................1W7B3: One 1W7J3: Two 1W7B3—One switch

/8”
7

1 /32”
5

Hole cutout
Back view Side view
The shaded area shows the additional 1W7J3 switch and cam length.
Key & switch positions Remove key Optional boxes
OC1 (1W7B3 only) 1W7J3—Two switches
OC2
INT
SWR
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos.1– Swt. pos.1

®
IDH MAX & ELECTROMECHANICAL LOCKS
