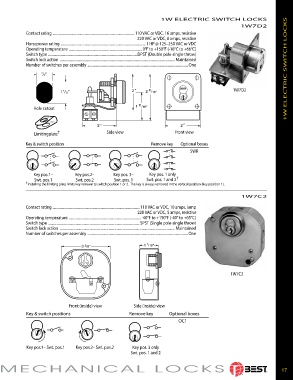

1W ELECTRIC SWITCH LOCKS
1W7D2
Contact rating ............................................................................................110 VAC or VDC, 16 amps, resistive
220 VAC or VDC, 8 amps, resistive
Horsepower rating ............................................................................................... 1 HP @ 125–250 VAC or VDC
Operating temperature .................................................................................. 0°F to +150°F (-18°C to +66°C)
Switch type ....................................................................................................DPST (Double pole-single throw)
Switch lock action ................................................................................................................................. Maintained
Number of switches per as sem bly .................................................................................................................One
/8”
7 1W ELECTRIC SWITCH LOCKS
1 /32” 1W7D2
5
Hole cutout
Limiting plate † Side view Front view
Key & switch position Remove key Optional boxes
SWR
Key pos.1– Key pos.2– Key pos. 3– Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos. 1 Swt. pos. 1 and 2 †
† Installing the limiting plate limits key removal to switch position 1 or 2. The key is always removed in the vertical position (key position 1).
1W7C2
Contact rating ..................................................................................................110 VAC or VDC, 10 amps, lamp
220 VAC or VDC, 5 amps, resistive
Operating temperature .................................................................................-40°F to +150°F (-40° to +65°C)
Switch type .......................................................................................................SPST (Single pole-single throw)
Switch lock action ................................................................................................................................. Maintained
Number of switches per assembly .................................................................................................................One
1W7C2
Front (inside) view Side (inside) view
Key & switch positions Remove key Optional boxes
OC1
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 3 only
Swt. pos. 1 and 2
IDH MAX & ELECTROMECHANICAL LOCKS 17
®
