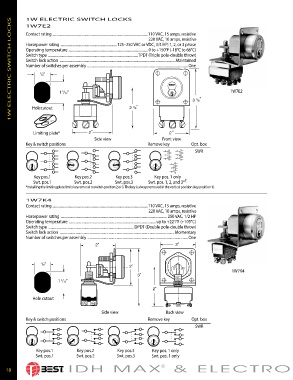

1W ELECTRIC SWITCH LOCKS
1W ELECTRIC SWITCH LOCKS
1W7E2
Contact rating ...........................................................................................................110 VAC, 15 amps, resistive
220 VAC, 10 amps, resistive
Horsepower rating ...............................................................125–250 VAC or VDC, 3/4 HP; 1, 2, or 3 phase
Operating temperature .........................................................................................0 to +150°F (-18°C to 66°C)
Switch type .....................................................................................................TPDT (Triple pole-double throw)
Switch lock action ................................................................................................................................. Maintained
Number of switches per assembly .................................................................................................................One

7 /8”

1 /32” 1W7E2
5

Hole cutout

Limiting plate*
Side view Front view
Key & switch positions Remove key Opt. box
SWR

Key pos.1 Key pos.2 Key pos.3 Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos.3 Swt. pos. 1, 2, and 3* †
*Installing the limiting plate limits key removal to switch position 2, or 3. The key is always removed in the vertical position (key position 1).

1W7K4
Contact rating ...........................................................................................................110 VAC, 15 amps, resistive
220 VAC, 10 amps, resistive
Horsepower rating ....................................................................................................................... 250 VAC, 1/2 HP
Operating temperature ..................................................................................................up to +221°F (+105°C)
Switch type ................................................................................................ DPDT (Double pole-double throw)
Switch lock action .................................................................................................................................Momentary
Number of switches per assembly .................................................................................................................One

7 /8”
1W7K4
1 /32”
5

Hole cutout

Side view Back view
Key & switch positions Remove key Opt. box
SWR

Key pos.1 Key pos.2 Key pos.3 Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos.3 Swt. pos. 1 only

IDH MAX & ELECTROMECHANICAL LOCKS
®
18
