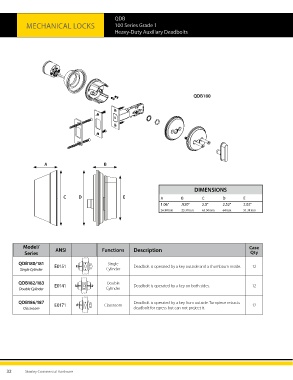

Page 19 - Cerraduras Stanley

QDB
MECHANICAL LOCKS 100 Series Grade 1
Heavy-Duty Auxiliary Deadbolts

QDB180

A B

D
A B DIMENSIONS
C
C D E A B C D E
1.06" .920" 2.5" 2.52" 2.02"
26.90mm 23.37mm 63.50mm 64mm 51.31mm

Model/ Case
Series ANSI Functions Description Qty

QDB180/181 E0151 Single Deadbolt is operated by a key outside and a thumbturn inside. 12
Single Cylinder Cylinder

QDB182/183 E0141 Double
Double Cylinder Cylinder Deadbolt is operated by a key on both sides. 12

QDB186/187 E0171 Classroom Deadbolt is operated by a key from outside. Turnpiece retracts 12
Classroom deadbolt for egress but can not project it.

32 Stanley Commercial Hardware
