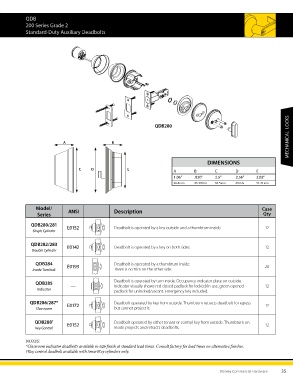

QDB
200 Series Grade 2
Standard-Duty Auxiliary Deadbolts

MECHANICAL LOCKS
QDB280

A B

A B DIMENSIONS
D
C
C D E A B C D E
1.06" .920" 2.5" 2.56" 2.02"
26.8mm 23.37mm 63.5mm 65mm 51.31mm

Model/ ANSI Description Case
Series Qty

QDB280/281 E0152
Single Cylinder Deadbolt is operated by a key outside and a thumbturn inside. 12

QDB282/283 E0142 Deadbolt is operated by a key on both sides. 12
Double Cylinder

QDB284 E0193 Deadbolt is operated by a thumbturn inside.
Inside Turnbolt There is no trim on the other side. 20

QDB285 — Deadbolt is operated by turn inside. Occupancy indicator plate on outside. 12
Indicator visually shows red closed padlock for locked/in-use, green opened
Indicator
padlock for unlocked/vacant. Emergency key included.
QDB286/287* E0172 Deadbolt operated by key from outside. Thumbturn retracts deadbolt for egress
Classroom but cannot project it. 12

QDB288 † E0152 Deadbolt operated by either tenant or control key from outside. Thumbturn on 12
Key Control inside projects and retracts deadbolts.

NOTES:
*Classroom indicator deadbolts available in 626 finish at standard lead times. Consult factory for lead times on alternative finishes.
†Key control deadbolt available with SmartKey cylinders only.

Stanley Commercial Hardware 35
