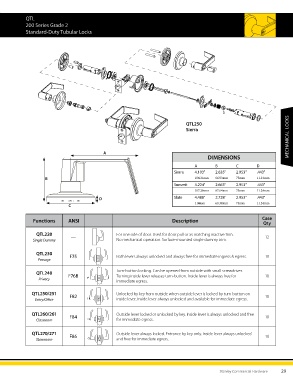

QTL
200 Series Grade 2
Standard-Duty Tubular Locks

MECHANICAL LOCKS
QTL250
Sierra

A
A DIMENSIONS D
C
B
A B C D
Sierra 4.103" 2.635" 2.953" .443"
B 104.21mm 66.93mm 75mm 11.24mm
Summit 4.224" 2.663" 2.953" .443"
107.29mm 67.64mm 75mm 11.24mm
D Slate 4.488" 2.728" 2.953" .443"
114mm 69.30mm 75mm 11.24mm
C

Functions ANSI Description Case
Qty
QTL220 — For one side of door. Used for door pull or as matching inactive trim.
Single Dummy No mechanical operation. Surface-mounted single dummy trim. 12

QTL230 F75 Both levers always unlocked and always free for immediate ingress & egress. 10
Passage

QTL240 F76B Turn-button locking. Can be opened from outside with small screwdriver. 10
Turning inside lever releases turn-button. Inside lever is always free for
Privacy
immediate egress.

QTL250/251 F82 Unlocked by key from outside when outside lever is locked by turn-button on
Entry/Office inside lever. Inside lever always unlocked and available for immediate egress. 10

QTL260/261 F84 Outside lever locked or unlocked by key. Inside lever is always unlocked and free 10
Classroom for immediate egress.

QTL270/271 F86 Outside lever always locked. Entrance by key only. Inside lever always unlocked 10
Storeroom and free for immediate egress.

Stanley Commercial Hardware 29
