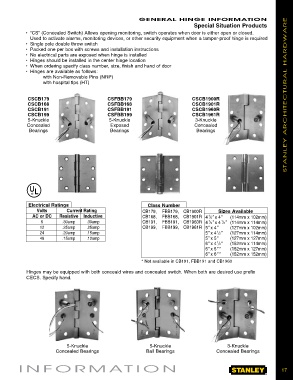

Page 7 - Bisagras Best
P. 7
GENERAL HINGE INFORMATION
Special Situation Products
• “CS” (Concealed Switch) Allows opening monitoring, switch operates when door is either open or closed.
Used to activate alarms, monitoring devices, or other security equipment when a tamper-proof hinge is required
• Single pole double throw switch
• Packed one per box with screws and installation instructions
• No electrical parts are exposed when hinge is installed
• Hinges should be installed in the center hinge location
• When ordering specify class number, size, finish and hand of door
• Hinges are available as follows:
with Non-Removable Pins (NRP)
with hospital tips (HT)
CSCB179 CSFBB179 CSCB1900R STANLEY ARCHITECTURAL HARDWARE
CSCB168 CSFBB168 CSCB1901R
CSCB191 CSFBB191 CSCB1960R
CSCB199 CSFBB199 CSCB1961R
5-Knuckle 5-Knuckle 3-Knuckle
Concealed Exposed Concealed
Bearings Bearings Bearings
Electrical Ratings Class Number
Volts Current Rating CB179, FBB179, CB1900R Sizes Available
AC or DC Resistive Inductive CB168, FBB168, CB1901R 4 ⁄2” x 4” (114mm x 102mm)
1
6 .30amp .30amp CB191, FBB191, CB1960R 4 ⁄2” x 4 ⁄2” (114mm x 114mm)
1
1
12 .25amp .25amp CB199, FBB199, CB1961R 5” x 4” (127mm x 102mm)
1
24 .20amp .15amp 5” x 4 ⁄2” (127mm x 114mm)
48 .15amp .12amp 5” x 5” (127mm x 127mm)
1
6” x 4 ⁄2” (152mm x 114mm)
6” x 5” * (152mm x 127mm)
6” x 6” * (152mm x 152mm)
* Not available in CB191, FBB191 and CB1960
Hinges may be equipped with both conceald wires and concealed switch. When both are desired use prefix
CECS. Specify hand.
5-Knuckle 5-Knuckle 3-Knuckle
Concealed Bearings Ball Bearings Concealed Bearings
