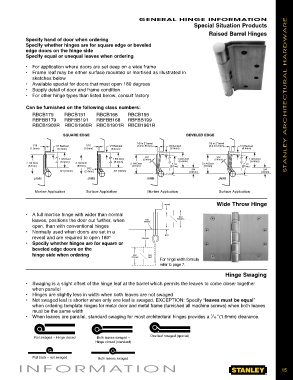

GENERAL HINGE INFORMATION
Special Situation Products
Raised Barrel Hinges
Specify hand of door when ordering
Specify whether hinges are for square edge or beveled
edge doors on the hinge side
Specify equal or unequal leaves when ordering

• For application where doors are set deep on a wide frame
• Frame leaf may be either surface mounted or mortised as illustrated in
sketches below
• Available special for doors that must open 180 degrees
• Supply detail of door and frame condition
• For other hinge types than listed below, consult factory STANLEY ARCHITECTURAL HARDWARE

Can be furnished on the following class numbers:

RBCB179 RBCB191 RBCB168 RBCB199
RBFBB179 RBFBB191 RBFBB168 RBFBB199
RBCB1900R RBCB1960R RBCB1901R RBCB1961R

SQUARE EDGE BEVELED EDGE

Mortise Application Surface Application Mortise Application Surface Application

Wide Throw Hinge
• A full mortise hinge with wider than normal
leaves, positions the door out further, when
open, than with conventional hinges
• Normally used when doors are set in a
reveal and are required to open 180°
• Specify whether hinges are for square or
beveled edge doors on the
hinge side when ordering
For hinge width formula
refer to page 7.

Hinge Swaging
• Swaging is a slight offset of the hinge leaf at the barrel which permits the leaves to come closer together
when parallel
• Hinges are slightly less in width when both leaves are not swaged
• Not swaged leaf is shorter when only one leaf is swaged. EXCEPTION: Specify “leaves must be equal”
when ordering template hinges for metal door and metal frame (furnished all machine screws) when both leaves
must be the same width
1
• When leaves are parallel, standard swaging for most architectural hinges provides a ⁄16” (1.6mm) clearance.

One leaf swaged (special)
Not swaged – Hinge closed Both leaves swaged –
Hinge closed (standard)

Flat back – not swaged Both leaves swaged
INFORMATION 15
