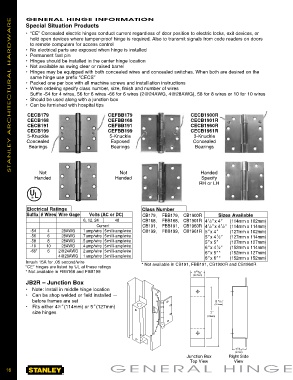

GENERAL HINGE INFORMATION
STANLEY ARCHITECTURAL HARDWARE
Special Situation Products
• “CE” Concealed electric hinges conduct current regardless of door position to electric locks, exit devices, or
hold open devices where tamper-proof hinge is required. Also to transmit signals from code readers on doors
to remote computers for access control
• No electrical parts are exposed when hinge is installed
• Permanent fast pin
• Hinges should be installed in the center hinge location
• Not available as swing clear or raised barrel
• Hinges may be equipped with both concealed wires and concealed switches. When both are desired on the
same hinge use prefix “CECS”
• Packed one per box with all machine screws and installlation instructions
• When ordering specify class number, size, finish and number of wires
Suffix -54 for 4 wires, 56 for 6 wires -66 for 6 wires (2@24AWG, 4@28AWG), 58 for 8 wires or 10 for 10 wires
• Should be used along with a junction box
• Can be furnished with hospital tips
CECB179 CEFBB179 CECB1900R
CECB168 CEFBB168 CECB1901R
CECB191 CEFBB191 CECB1960R
CECB199 CEFBB199 CECB1961R
5-Knuckle 5-Knuckle 3-Knuckle
Concealed Exposed Concealed
Bearings Bearings Bearings
Not Not Handed
Handed Handed Specify
RH or LH
Electrical Ratings Class Number
Suffix # Wires Wire Gage Volts (AC or DC) CB179, FBB179, CB1900R Sizes Available
6, 12, 24 48 CB168, FBB168, CB1901R 4 ⁄2” x 4” (114mm x 102mm)
1
1
Current CB191, FBB191, CB1960R 4 ⁄2” x 4 ⁄2” (114mm x 114mm)
1
-54 4 28AWG 1 amp/wire 5 milli-amp/wire CB199, FBB199, CB1961R 5” x 4” (127mm x 102mm)
-56 6 28AWG .7 amp/wire 5 milli-amp/wire 5” x 4 ⁄2” (127mm x 114mm)
1
-58 8 28AWG .5 amp/wire 5 milli-amp/wire 5” x 5” (127mm x 127mm)
-10 10 28AWG .4 amp/wire 5 milli-amp/wire 6” x 4 ⁄2” (152mm x 114mm)
1
-66* 6 2@24AWG 2 amp/wire 5 milli-amp/wire 6” x 5” * (152mm x 127mm)
4@28AWG 1 amp/wire 5 milli-amp/wire
6” x 6” * (152mm x 152mm)
Inrush 15A for .05 second/wire * Not available in CB191, FBB191, CB1900R and CB1960R
“CE” hinges are listed by UL at these ratings
* Not available in FBB168 and FBB199
JB2R – Junction Box
• Note: Install in middle hinge location
• Can be shop welded or field installed —
before frames are set
1
• Fits either 4 ⁄2” (114mm) or 5” (127mm)
size hinges
Junction Box Right Side
Top View View
GENERAL HINGE
16
