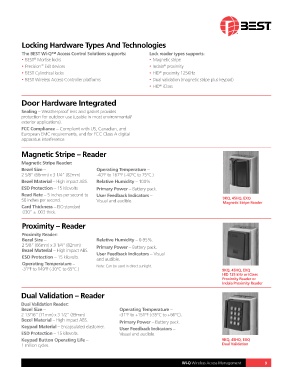

Locking Hardware Types And Technologies
The BEST Wi-Q™ Access Control Solutions supports: Lock reader types supports:
• BEST Mortise locks • Magnetic stripe
®
• Precision Exit devices • Indala proximity
™
®
• BEST Cylindrical locks • HID proximity 125KHz
®
• BEST Wireless Access Controller platforms • Dual validation (magnetic stripe plus keypad)
• HID iClass
®
Door Hardware Integrated
Sealing – Weatherproof lens and gasket provides
protection for outdoor use (usable in most environmental/
exterior applications).
FCC Compliance – Compliant with US, Canadian, and
European EMC requirements, and for FCC Class A digital
apparatus interference.

Magnetic Stripe – Reader

Magnetic Stripe Reader:
Bezel Size – Operating Temperature –
2 5/8” (66mm) x 3 1/4” (82mm) -40°F to 167°F (-40°C to 75°C.)
Bezel Material – High impact ABS. Relative Humidity – 100%.
ESD Protection – 15 kilovolts Primary Power – Battery pack.
Read Rate – 5 inches per second to User Feedback Indicators –
50 inches per second. Visual and audible. 9KQ, 45HQ, EXQ
Magnetic Stripe Reader
Card Thickness – ISO standard
.030” ± .003 thick.

Proximity – Reader
Proximity Reader:
Bezel Size – Relative Humidity – 0-95%.
2 5/8” (66mm) x 3 1/4” (82mm) Primary Power – Battery pack.
Bezel Material – High impact ABS.
ESD Protection – 15 kilovolts. User Feedback Indicators – Visual
and audible.
Operating Temperature –
-31°F to 149°F (-30°C to 65°C.) Note: Can be used in direct sunlight. 9KQ, 45HQ, EXQ
HID 125 kHz or iClass
Proximity Reader or
Indala Proximity Reader

Dual Validation – Reader
Dual Validation Reader:
Bezel Size – Operating Temperature –
2 13/16” (71mm) x 3 1/2” (89mm) -31°F to +151°F (-35°C to +66°C).
Bezel Material – High impact ABS. Primary Power – Battery pack.
Keypad Material – Encapsulated elastomer. User Feedback Indicators –
ESD Protection – 15 kilovolts. Visual and audible.
Keypad Button Operating Life – 9KQ, 45HQ, EXQ
1 million cycles. Dual Validation

Wi-Q Wireless Access Management 9

Specifications For All Readers:
Primary Power – Battery pack.
User Feedback Indicators – Visual
and audible.
