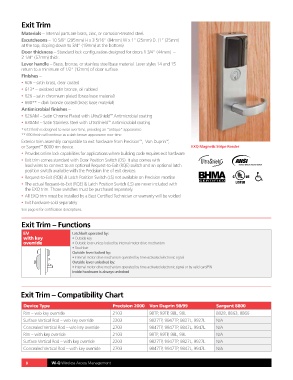

Exit Trim

Materials – Internal parts are brass, zinc, or corrosion-treated steel.
Escutcheons – 10 5/8” (295mm) H x 3 5/16” (84mm) W x 1” (25mm) D. (1” (25mm)
at the top, sloping down to 3/4” (19mm) at the bottom)
Door thickness – Standard lock configuration designed for doors 1 3/4” (44mm) –
2 1/4” (57mm) thick.
Lever handle – Brass, bronze, or stainless steel base material. Lever styles 14 and 15
return to a minimum of 1/2” (12mm) of door surface.
Finishes –
• 606 – satin brass, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 626 – satin chromium plated (brass base material)
• 690** – dark bronze coated (brass base material)
Antimicrobial finishes –
• 626AM – Satin Chrome Plated with UltraShield Antimicrobial coating
™
™
• 630AM – Satin Stainless Steel with UltraShield Antimicrobial coating
* 613 finish is designed to wear over time, providing an “antique” appearance.
** 690 finish will continue as a dark brown appearance over time.
Exterior trim assembly compatible to exit hardware from Precision , Von Duprin ,
™
™
or Sargent 8000 rim device. EXQ Magnetic Stripe Reader
™
• Provides online lock capabilities for applications where building code requires exit hardware
• Exit trim comes standard with Door Position Switch (DS). It also comes with UltraShield ™
lead wires to connect to an optional Request-to-Exit (RQE) switch and an optional latch
position switch available with the Precision line of exit devices.
• Request-to-Exit (RQE) & Latch Position Switch (LS) not available on Precision mortise
• The actual Request-to-Exit (RQE) & Latch Position Switch (LS) are never included with
the EXQ trim. Those switches must be purchased separately.
• All EXQ trim must be installed by a Best Certified Technician or warranty will be voided
• Exit hardware sold separately
See page 6 for certification descriptions.

Exit Trim – Functions

EV Latchbolt operated by:
with key • Outside key
override • Outside lever-unless locked by internal motor drive mechanism
• Touchbar
Outside lever locked by:
• Internal motor drive mechanism operated by time-activated electronic signal
Outside lever unlocked by:
• Internal motor drive mechanism operated by time-activated electronic signal or by valid card/PIN
Inside hardware is always unlocked

Exit Trim – Compatibility Chart

Device Type Precision 2000 Von Duprin 98/99 Sargent 8800
Rim – w/o key override 2103 98TP, 99TP, 98L, 99L 8828, 8863, 8866
Surface Vertical Rod – w/o key override 2203 9827TP, 9947TP, 9827L, 9927L N/A
Concealed Vertical Rod – w/o key override 2703 9847TP, 9847TP, 9847L, 9947L N/A
Rim – with key override 2103 98TP, 99TP, 98L, 99L N/A
Surface Vertical Rod – with key override 2203 9827TP, 9947TP, 9827L, 9927L N/A
Concealed Vertical Rod – with key override 2703 9847TP, 9947TP, 9847L, 9947L N/A

8 Wi-Q Wireless Access Management
