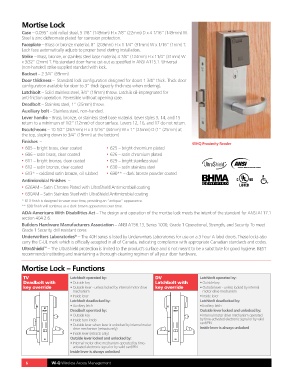

P. 6
Mortise Lock
Case – 0.095” cold rolled steel, 5 7/8” (149mm) H x 7/8” (22mm) D x 4 1/16” (149mm) W.
Steel is zinc dichromate plated for corrosion protection.
Faceplate – Brass or bronze material, 8” (203mm) H x 1 1/4” (31mm) W x 1/16” (1mm) T.
Lock face automatically adjusts to proper bevel during installation.
Strike – Brass, bronze, or stainless steel base material, 4 7/8” (124mm) H x 11/4” (31mm) W
x 3/32” (2mm) T. Fits standard door frame cut-out as specified in ANSI A115.1. Universal
(non-handed) strike supplied standard with lock.
Backset – 2 3/4” (69mm)
Door thickness – Standard lock configuration designed for doors 1 3/4” thick. Thick door
configuration available for door to 3” thick (specify thickness when ordering).
Latchbolt – Solid stainless steel, 3/4” (19mm) throw. Latch is oil-impregnated for
anti-friction operation. Reversible without opening case.
Deadbolt – Stainless steel, 1” (25mm) throw.
Auxiliary bolt – Stainless steel, non-handed.
Lever handle – Brass, bronze, or stainless steel base material. Lever styles 3, 14, and 15
return to a minimum of 1/2” (12mm) of door surface. Levers 12, 16, and 17 do not return.
Escutcheons – 10 1/2” (267mm) H x 3 5/16” (84mm) W x 1” (25mm) D (1” (25mm) at
the top, sloping down to 3/4” (19mm) at the bottom)
Finishes –
45HQ Proximity Reader
• 605 – bright brass, clear coated • 625 – bright chromium plated
• 606 – satin brass, clear coated • 626 – satin chromium plated
• 611 – bright bronze, clear coated • 629 – bright stainless steel ™
• 612 – satin bronze, clear coated • 630 – satin stainless steel UltraShield
• 613* – oxidized satin bronze, oil rubbed • 690** – dark bronze powder coated
Antimicrobial Finishes –
• 626AM – Satin Chrome Plated with UltraShield Antimicrobial coating
• 630AM – Satin Stainless Steel with UltraShield Antimicrobial coating
* 613 finish is designed to wear over time, providing an “antique” appearance.
** 690 finish will continue as a dark brown appearance over time.
ADA-Americans With Disabilities Act – The design and operation of the mortise lock meets the intent of the standard for ANSI A117.1
section 404.2.6.
Builders Hardware Manufacturers Association – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security. To meet
Grade 1 Security, drill resistant cores
®
Underwriters Laboratories – The 40H series is listed by Underwriters Laboratories for use on a 3 hour A label doors. These locks also
carry the C-UL mark which is officially accepted in all of Canada, indicating compliance with appropriate Canadian standards and codes.
UltraShield – The UltraShield protection is limited to the product’s surface and is not meant to be a substitute for good hygiene. BEST
™
recommends instituting and maintaining a thorough cleaning regimen of all your door hardware.
Mortise Lock – Functions
TV Latchbolt operated by: DV Latchbolt operated by:
Deadbolt with • Outside key Latchbolt with • Outside key
key override • Outside lever - unless locked by internal motor drive key override • Outside lever - unless locked by internal
mechanism motor drive mechanism
• Inside lever • Inside lever
Latchbolt deadlocked by: Latchbolt deadlocked by:
• Auxiliary latch •Auxiliary latch
Deadbolt operated by: Outside lever locked and unlocked by:
• Outside key • Internal motor drive mechanism operated
• Inside turn knob by time-activated electronic signal or by valid
• Outside lever when lever is unlocked by internal motor card/PIN
drive mechanism (retracts only) Inside lever is always unlocked
• Inside lever (retracts only)
Outside lever locked and unlocked by:
• Internal motor drive mechanism operated by time-
activated electronic signal or by valid card/PIN
Inside lever is always unlocked
6 Wi-Q Wireless Access Management
