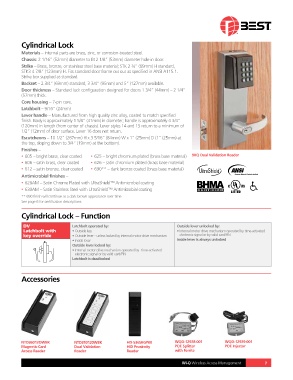

Cylindrical Lock

Materials – Internal parts are brass, zinc, or corrosion-treated steel.
Chassis: 2 1/16” (52mm) diameter to fit 2 1/8” (53mm) diameter hole in door.
Strike – Brass, bronze, or stainless steel base material; STK 2 ¾” (69mm) H standard,
STK3 4 7/8” (123mm) H. Fits standard door frame cut out as specified in ANSI A115.1.
Strike box supplied as standard.
Backset – 2 3/4” (69mm) standard, 3 3/4” (95mm) and 5” (127mm) available.
Door thickness – Standard lock configuration designed for doors 1 3/4” (44mm) – 2 1/4”
(57mm) thick.
Core housing – 7-pin core.
Latchbolt – 9/16” (24mm)
Lever handle – Manufactured from high quality zinc alloy, coated to match specified
finish. Body is approximately 1 5/8” (41mm) in diameter; handle is approximately 4 3/4”
(120mm) in length (from center of chassis). Lever styles 14 and 15 return to a minimum of
1/2” (12mm) of door surface. Lever 16 does not return.
Escutcheons – 10 1/2” (267mm) H x 3 5/16” (84mm) W x 1” (25mm) D (1” (25mm) at
the top, sloping down to 3/4” (19mm) at the bottom).
Finishes –
• 605 – bright brass, clear coated • 625 – bright chromium plated (brass base material) 9KQ Dual Validation Reader
• 606 – satin brass, clear coated • 626 – satin chromium plated (brass base material)
• 612 – satin bronze, clear coated • 690** – dark bronze coated (brass base material) ™
UltraShield
Antimicrobial finishes –
• 626AM – Satin Chrome Plated with UltraShield™ Antimicrobial coating
• 630AM – Satin Stainless Steel with UltraShield™ Antimicrobial coating
** 690 finish will continue as a dark brown appearance over time.
See page 6 for certification descriptions.

Cylindrical Lock – Function

DV Latchbolt operated by: Outside lever unlocked by:
Latchbolt with • Outside key • Internal motor drive mechanism operated by time-activated
key override • Outside lever - unless locked by internal motor drive mechanism electronic signal or by valid card/PIN
• Inside lever Inside lever is always unlocked
Outside lever locked by:
• Internal motor drive mechanism operated by time-activated
electronic signal or by valid card/PIN
Latchbolt is deadlocked

Accessories

NTD36012OWBK NTD310120WBK HD-5365EGP00 WQD-12928-001 WQD-12929-001
Magnetic Card Dual Validation HID Proximity POE Splitter POE Injector
Access Reader Reader Reader with Ferrite

Wi-Q Wireless Access Management 7
