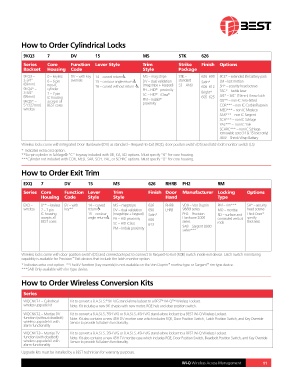

How to Order Cylindrical Locks

9KQ3 7 DV 15 MS STK 626
Series Core Function Lever Style Trim Strike Finish Options
Backset Housing Code Style Package
9KQ3 – 0 – keyless DV – with key 14 – curved return MS – mag stripe STK – 626 690 8CE* – extended life battery pack
2-3/4" 6 – 6 pin override 15 – contour angle return DV – dual validation standard Satin* LM – lost motion
(69mm) non-IC 16 – curved without return (magstripe + keypad) S3 – ANSI 606 612 SH* – security head screws
9KQ4* – cylinder PH – HID proximity TAC* – tactile lever
®
3-3/4" 7 – 7 pin SC – HID iClass ® Bright*
®
(95mm) IC housing ® 605 625 3/4* – 3/4" (19mm) throw latch
9KQ5* – accepts all PM – Indala OB** – non-IC zero-bitted
proximity
5"(127mm) BEST cores COR*** – non IC Corbin/Russwin
wireless MED*** – non IC Medeco
SAR*** – non IC Sargent
SCH*** – non IC Schlage
YAL*** – non IC Yale
SCHRC*** – non IC Schlage
removable core (14 & 15 lever only)
4SW – Shrink Wrap Battery
Wireless locks come with Integrated Door Hardware (IDH) as standard – Request-to-Exit (RQE), door positon switch (DS) and latch bolt monitor switch (LS)
* Indicates extra cost option.
** Six-pin cylinder in Schlage® “C” keyway included with 0B, KA, KD options. Must specify “6” for core housing.
*** Cylinder not included with COR, MED, SAR, SCH, YAL, or SCHRC options. Must specify “0” for core housing.

How to Order Exit Trim

EXQ 7 DV 15 MS 626 RHRB PH2 RM
Series Core Function Lever Trim Finish Door Manufacturer Locking Options
Housing Code Style Style Hand Type
EXQ – 0** – keyless EV – with 14 – curved MS – magstripe 626 RHRB VD9 – Von Duprin RM – rim*** SH* – security
wireless 7 – 7 pin key** return DV – dual validation 690 LHRB 98/99 series MO – mortise head screws
IC housing 15 – contour (magstripe + keypad) Satin* PH2 – Precision RD – surface and Thick Door* –
accepts all angle return PH – HID proximity 606 Hardware 2000 concealed vertical specify
BEST cores series rods thickness
SC – HID iClass 613
PM – Indala proximity SA8 – Sargent 8000
series***

Wireless locks come with door position switch (DS) and connector/input to connect to Request-to-Exit (RQE) switch inside exit device. Latch switch monitoring
™
capability is available for Precision Exit devices that include the latch monitor option.
* Indicates extra cost option. **The EV function (key override) is not available on the Von Duprin mortise type or Sargent rim type device.
™
™
*** SA8 Only available with rim type device.
How to Order Wireless Conversion Kits

Series
WQCNKT-1 – Cylindrical Kit to convert a B.A.S.I.S. 9K V/G stand-alone lockset to a BEST Wi-Q™ Wireless Lockset.
®
®
wireless upgrade kit Note: Kit includes a new 9K chassis with new motor, RQE hub and door position switch.
WQCNKT-2 – Mortise DV Kit to convert a B.A.S.I.S. 35H V/G or B.A.S.I.S. 45H V/G stand-alone lockset to a BEST Wi-Q Wireless Lockset.
function (without deadbolt) Note: Kit also contains a new 45H DV mortise case which includes RQE, Door Position Switch, Latch Position Switch, and Key Override
wireless upgrade kit with Sensor to provide full alarm functionality.
alarm functionality
WQCNKT-3 – Mortise TV Kit to convert a B.A.S.I.S. 35H V/G or B.A.S.I.S. 45H V/G stand-alone lockset to a BEST Wi-Q Wireless Lockset.
function (with deadbolt) Note: Kit also contains a new 45H TV mortise case which includes RQE, Door Position Switch, Deadbolt Position Switch, and Key Override
wireless upgrade kit with Sensor to provide full alarm functionality.
alarm functionality
Upgrade kits must be installed by a BEST technician for warranty purposes.

Wi-Q Wireless Access Management 11
