8310
Series

Auto Operator
Actuators &
Accessories

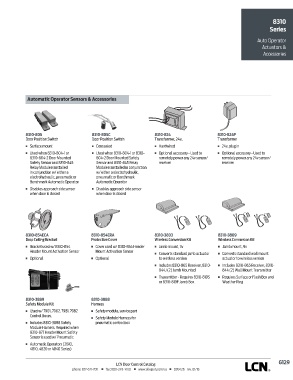

Automatic Operator Sensors & Accessories

8310-805 8310-805C 8310-824 8310-824P
Door Position Switch Door Position Switch Transformer, 24v, Transformer
n Surface mount n Concealed n Hardwired n 24v, plug in
n Used when 8310-804-1 or n Used when 8310-804-1 or 8310- n Optional accessory - Used to n Optional accessory - Used to
8310-804-2 Door Mounted 804-2 Door Mounted Safety remotely power any 24v sensor/ remotely power any 24v sensor/
Safety Sensor and 8310-845 Sensor and 8310-845 Relay receiver receiver
Relay Module is installed Module is installed in conjunction
in conjunction w/ either a w/ either a electrohydraulic,
electrohydraulic, pneumatic or pneumatic or Benchmark
Benchmark Automatic Operator Automatic Operator
n Disables approach side sensor n Disables approach side sensor
when door is closed when door is closed

8310-854ECA 8310-854ERA 8310-3803 8310-3809
Drop Ceiling Bracket Protective Cover Wireless Conversion Kit Wireless Conversion Kit
n Bracket used w/ 8310-854 n Cover used w/ 8310-854 Header n Jamb mount, 3v n Jamb mount, 9v
Header Mount Activation Sensor Mount Activation Sensor n Converts standard jamb actuator n Converts standard wall mount
n Optional n Optional to wireless version actuator to wireless version
n Includes 8310-865 Receiver, 8310- n Includes 8310-865 Receiver, 8310-
844J (2) Jamb Mounted 844 (2) Wall Mount Transmitter
n Transmitter - Requires 8310-819S n Requires Surface or Flush Box and
or 8310-819F Jamb Box Weather Ring

8310-3889 8310-3888
Safety Module Kit Harness
n Used w/ 7901, 7902, 7981, 7982 n Safety module, service part
Control Boxes.
n Safety Module Harness for
n Includes 8310-3888 Safety pneumatic control box
Module Harness. Required when
8310-877 Header Mount Safety
Sensor is used w/ Pneumatic
n Automatic Operators (2610,
4810, 4820 or 4840 Series)

G129
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
