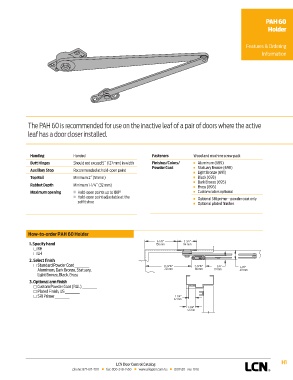

PAH 60 PAH 60
HolderHolder

Features & Ordering
Information

The PAH 60 is recommended for use on the inactive leaf of a pair of doors where the active
leaf has a door closer installed.

Handing Handed Fasteners Wood and machine screw pack
Butt Hinges Should not exceed 5˝ (127 mm) in width Finishes/Colors/ n Aluminum (689)
Powder Coat n Statuary Bronze (690)
Auxiliary Stop Recommended at hold-open point n Light Bronze (691)
Top Rail Minimum 2˝ (51 mm) n Black (693)
n Dark Bronze (695)
Rabbet Depth Minimum 1-1/4˝ (32 mm) n Brass (696)
Maximum opening n Hold-open points up to 180° n Custom colors optional
n Hold-open point adjustable at the n Optional SRI primer - powder coat only
soffit shoe n Optional plated finishes

How-to-order PAH 60 Holder
6-1/8" 3-3/4"
1. Specify hand 156 mm 94 mm
RH
LH
2. Select finish
Standard Powder Coat __________ 8-11/16" 2-11/16" 3/4" 1-7/8"
Aluminum, Dark Bronze, Statuary, 221 mm 68 mm 19 mm 48 mm
Light Bronze, Black, Brass
3. Optional arm finish
Custom Powder Coat (RAL) __________
Plated Finish, US __________
SRI Primer __________ 1-1/4"
32 mm
1-3/4"
44 mm

H1
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
