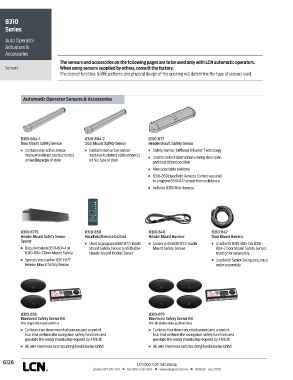

8310
Series

Auto Operator
Actuators &
Accessories

The sensors and accessories on the following pages are to be used only with LCN automatic operators.
Sensors When using sensors supplied by others, consult the factory.
The desired function, traffic patterns and physical design of the opening will determine the type of sensors used.

Automatic Operator Sensors & Accessories

8310-804-1 8310-804-2 8310-877
Door Mount Safety Sensor Door Mount Safety Sensor Header Mount Safety Sensor
n Contains one active sensor n Contains two active sensor n Safety Sensor, 'Diffused Infrared' Technology
module to detect obstruction(s) modules to detect obstruction(s) n Used to detect obstructions during door open
on leading edge of door on full face of door
and door closed position
n Nine selectable patterns
n 8310-859 Handheld Remote Control required
to program 8310-877 sensor from a distance
n Includes 8310-846 Harness

8310-877S 8310-859 8310-846 8310-847
Header Mount Safety Sensor Handheld Remote Control Header Mount Harness Door Mount Harness
Spacer n Used to program 8310-877 Header n Comes with 8310-877 Header n Used with 8310-804-1 or 8310-
n Required when 8310-804-1 or Mount Safety Sensor or 8310-854 Mount Safety Sensor 804-2 Door Mount Safety Sensor,
8310-804-2 Door Mount Safety Header Mount Motion Sensor must order separately.
n Spacers are used w/ 8310-877 n Used with Senior Swing only, must
Header Mount Safety Sensor order separately

8310-878 8310-879
Monitored Safety Sensor Kit Monitored Safety Sensor Kit
(For single door applications) (For all double door applications)
n Contains two door-mounted sensors and a control n Contains four door-mounted sensors and a control
hub that perform the swing door safety functions and hub that perform the swing door safety functions and
provides the sensor monitoring required by A156.10 provides the sensor monitoring required by A156.10
n All wire harnesses and mounting hardware included n All wire harnesses and mounting hardware included

G126 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
