P. 7

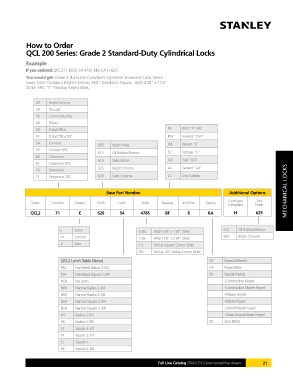

How to Order
QCL 200 Series: Grade 2 Standard-Duty Cylindrical Locks
Example
If you ordered: QCL271 E626 S4 478S BF6 KA H 625
You would get: Grade 2 Hurricane Compliant Cylindrical Storeroom Lock, Sierra
Lever, Satin Chrome x Bright Chrome, 23⁄4" Deadlatch Square, ANSI 47⁄8" x 11⁄4"
Strike, SFIC “F” Keyway, Keyed Alike.
20 Single Dummy
30 Passage
35 Communicating
40 Privacy
50 Entry/Office BF BEST "F" SFIC
51 Entry/Office SFIC KW Kwikset “KW”
54 Corridor WE Weiser “E”
605 Bright Brass
55 Corridor SFIC
613 Oil Rubbed Bronze SC Schlage “C”
60 Classroom
619 Satin Nickel GA Yale “GA"
61 Classroom SFIC
625 Bright Chrome LA Sargent “LA”
70 Storeroom
71 Storeroom SFIC 626 Satin Chrome LC Less Cylinder
Base Part Number Additional Options MECHANICAL LOCKS
Hurricane 2nd
Series Function Design Finish Latch Strike Keyway # of Pins Keying
Compliant Finish
QCL2 71 E 626 S4 478S BF 6 KA H 625
E Sierra 478S ANSI 47⁄8" x 11⁄4" Strike 613 Oil Rubbed Bronze
M Summit 118F ANSI 11⁄8" x 21⁄4" Strike 625 Bright Chrome
A Slate FLS Full Lip Square Corner Strike
FLR Full Lip 1⁄4" Radius Corner Strike
QCL2 Latch Table (New) KD Keyed Different
FR4 Fire-Rated Radius 2-3/4 KA Keyed Alike
FS4 Fire-Rated Square 2-3/4 SK Special Keying
NOL No Latch -Construction Keyed
NR4 Narrow Radius 2-3/4 -Construction Master Keyed
NR8 Narrow Radius 2-3/8 -Maison Keyed
NS4 Narrow Square 2-3/4 -Master Keyed
NS8 Narrow Square 2-3/8 -Grand Master Keyed
R4 Radius 2-3/4 -Great Grand Master Keyed
R8 Radius 2-3/8 ZB Zero Bitted
S3 Square 3-3/4
S4 Square 2-3/4
S5 Square 5
S8 Square 2-3/8
Full Line Catalog STANLEY Commercial Hardware 21
