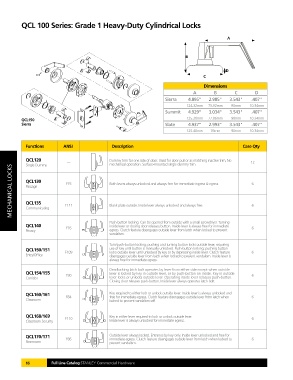

QCL 100 Series: Grade 1 Heavy-Duty Cylindrical Locks

A

B

D
C

Dimensions
A B C D
Sierra 4.895" 2.985" 3.543" .407"
124.32mm 75.82mm 90mm 10.34mm
Summit 4.929" 3.034" 3.543" .407"

QCL150 125.20mm 77.06mm 90mm 10.34mm
Sierra Slate 4.937" 2.993" 3.543" .407"
125.40mm 76mm 90mm 10.34mm

Functions ANSI Description Case Qty

QCL120 — Dummy trim for one side of door. Used for door pull or as matching inactive trim. No 12
mechanical operation. Surface-mounted single dummy trim.
Single Dummy
MECHANICAL LOCKS QCL130 F111 Both levers always unlocked and always free for immediate ingress & egress. 6 6

F75
Passage

QCL135
Blank plate outside. Inside lever always unlocked and always free.
Communicating

Push-button locking. Can be opened from outside with a small screwdriver. Turning
QCL140 inside lever or closing door releases button. Inside lever is always free for immediate
Privacy F76 egress. Clutch feature disengages outside lever from latch when locked to prevent 6
vandalism.
Turn/push-button locking; pushing and turning button locks outside lever, requiring
QCL150/151 F109 use of key until button is manually unlocked. Push-button locking; pushing button 6
locks outside lever until unlocked by key or by depressing inside lever. Clutch feature
Entry/Office disengages outside lever from latch when locked to prevent vandalism. Inside lever is
always free for immediate egress.

Deadlocking latch bolt operates by lever from either side except when outside
QCL154/155 F90 lever is locked by key in outside lever, or by push-button on inside. Key in outside 6
Corridor lever locks or unlocks outside lever. Operating inside lever releases push-button.
Closing door releases push-button. Inside lever always operates latch bolt.

QCL160/161 F84 Key required to either lock or unlock outside lever. Inside lever is always unlocked and 6
free for immediate egress. Clutch feature disengages outside lever from latch when
Classroom locked to prevent vandalism.sdf

QCL168/169 F110 Key in either lever required to lock or unlock outside lever. 6
Classroom Security Inside lever is always unlocked for immediate egress.

QCL170/171 F86 Outside lever always locked. Entrance by key only. Inside lever unlocked and free for 6
immediate egress. Clutch feature disengages outside lever from latch when locked to
Storeroom prevent vandalism.

16 Full Line Catalog STANLEY Commercial Hardware
