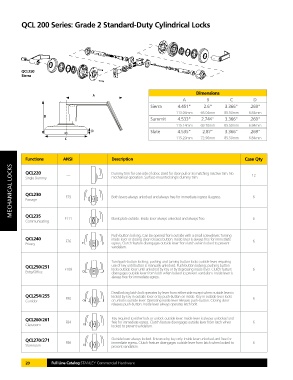

QCL 200 Series: Grade 2 Standard-Duty Cylindrical Locks

QCL250
Sierra

Dimensions
A
A B C D
Sierra 4.451" 2.6" 3.366" .269"
113.06mm 66.04mm 85.50mm 6.84mm
B
Summit 4.533" 2.744" 3.366" .269"
115.14mm 69.70mm 85.50mm 6.84mm
D Slate 4.535" 2.87" 3.366" .269"
C 115.20mm 72.90mm 85.50mm 6.84mm

Functions ANSI Description Case Qty
MECHANICAL LOCKS Single Dummy F75 mechanical operation. Surface-mounted single dummy trim. 12
QCL220
Dummy trim for one side of door. Used for door pull or as matching inactive trim. No
—

QCL230
6
Both levers always unlocked and always free for immediate ingress & egress.
Passage

QCL235
Communicating F111 Blank plate outside. Inside lever always unlocked and always free. 6

Push-button locking. Can be opened from outside with a small screwdriver. Turning
QCL240 F76 inside lever or closing door releases button. Inside lever is always free for immediate 6
Privacy egress. Clutch feature disengages outside lever from latch when locked to prevent
vandalism.

Turn/push-button locking; pushing and turning button locks outside lever, requiring
QCL250/251 use of key until button is manually unlocked. Push-button locking; pushing button
Entry/Office F109 locks outside lever until unlocked by key or by depressing inside lever. Clutch feature 6
disengages outside lever from latch when locked to prevent vandalism. Inside lever is
always free for immediate egress.

Deadlocking latch bolt operates by lever from either side except when outside lever is
QCL254/255 F90 locked by key in outside lever or by push-button on inside. Key in outside lever locks 6
Corridor or unlocks outside lever. Operating inside lever releases push-button. Closing door
releases push-button. Inside lever always operates latch bolt.

QCL260/261 F84 Key required to either lock or unlock outside lever. Inside lever is always unlocked and 6
free for immediate egress. Clutch feature disengages outside lever from latch when
Classroom locked to prevent vandalism.

QCL270/271 Outside lever always locked. Entrance by key only. Inside lever unlocked and free for
Storeroom F86 immediate egress. Clutch feature disengages outside lever from latch when locked to 6
prevent vandalism.

20 Full Line Catalog STANLEY Commercial Hardware
